QBHP4545E-UV265U
lmages are for reference only.QBHP4545E-UV265U
4545 UVC, WLP=265NM, PO=40MW TYP
Datasheet2-SMD, No Lead Exposed Pad
93,470 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Ultraviolet (UV) Emitter 265nm 6V 350mA 28mW/sr @ 350mA 60° 2-SMD, No Lead Exposed Pad
QBHP4545E-UV265U
| Category | Optoelectronics - LED Emitters Infrared-UV-Visible - |
| Manufacturer | QT Brightek (QTB) |
| Series | QBHP4545 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | |
| Base Product Number | QBHP4545 |
| Type | Ultraviolet (UV) |
| Current - DC Forward (If) (Max) | 350mA |
| Radiant Intensity (Ie) Min @ If | 28mW/sr @ 350mA |
| Wavelength | 265nm |
| Voltage - Forward (Vf) (Typ) | 6V |
| Viewing Angle | 60° |
| Orientation | Top View |
| Operating Temperature | -10°C ~ 50°C |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

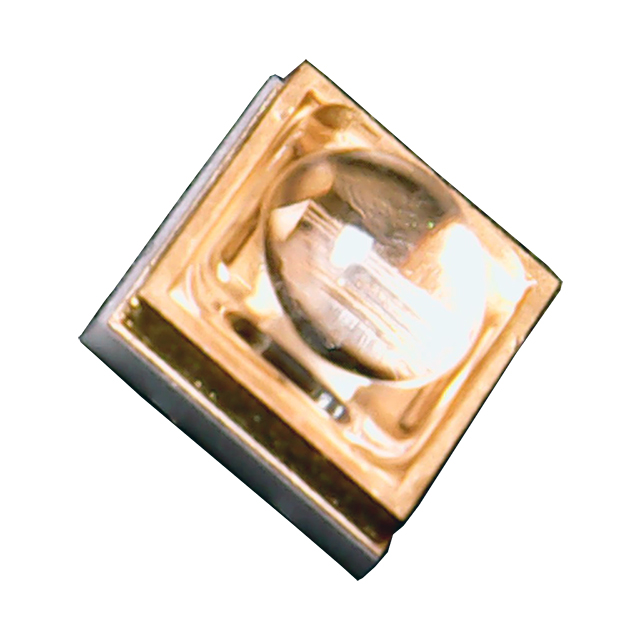

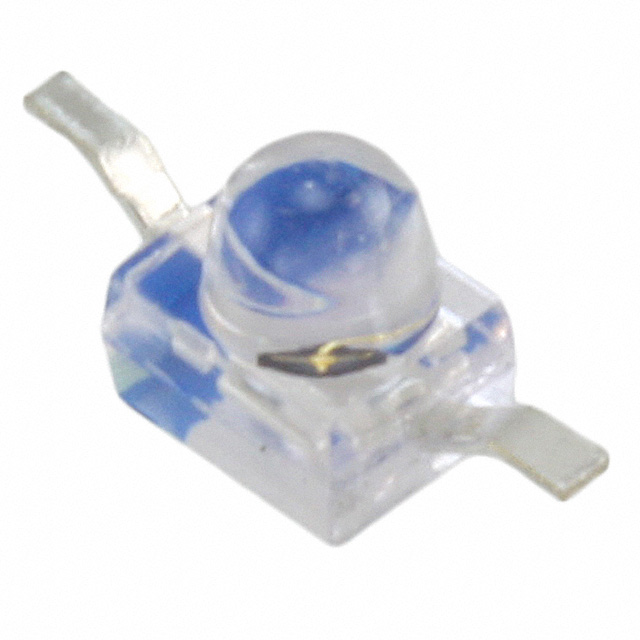

| Part Number | QBHP4545E-UV265H | QBHP4545E-UV280U | QLIR05DYAM | QEB373ZR |
| Manufacturer | QT Brightek (QTB) | QT Brightek (QTB) | Quelighting Corp | onsemi |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 4545 UVC, WLP=265NM, PO=18MW TYP | 4545 UVC, WLP=280NM, PO=40MW TYP | 3528 PACKAGE IR LED, PLCC4, TOP | EMITTER IR 875NM 50MA SMD |
| Series | QBHP4545 | QBHP4545 | PLCC-4 | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
