QBLP615-RGB-3053

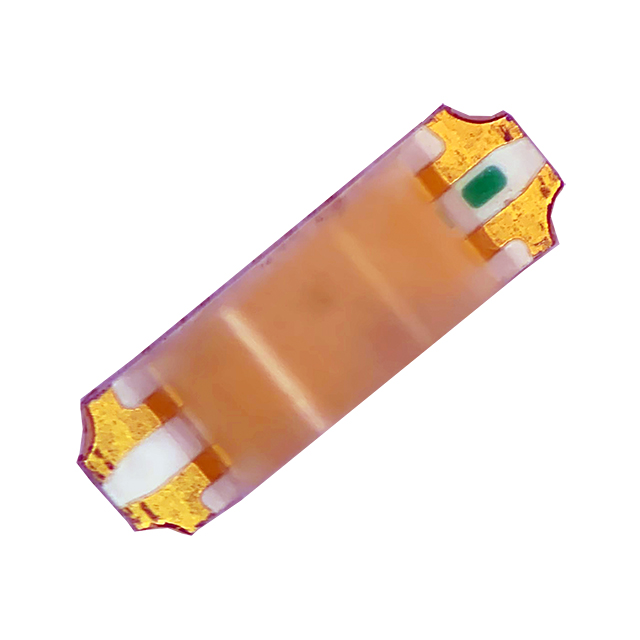

lmages are for reference only.QBLP615-RGB-3053
LED RGB DIFFUSED 1206 SMD R/A
Datasheet1206 (3216 Metric)
68,656 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red, Green, Blue (RGB) 620nm Red, 527nm Green, 470nm Blue LED Indication - Discrete 2V Red, 2.7V Green, 2.8V Blue 1206 (3216 Metric)
QBLP615-RGB-3053
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | QT Brightek (QTB) |
| Series | QBLP615 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, Green, Blue (RGB) |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Diffused |
| Millicandela Rating | 116mcd Red, 363mcd Green, 63mcd Blue |
| Lens Style | Rectangle with Domed Top |
| Lens Size | 2.00mm x 1.00mm |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.7V Green, 2.8V Blue |
| Current - Test | 9.8mA Red, 7mA Green, 6mA Blue |
| Viewing Angle | 150° |
| Mounting Type | Surface Mount, Right Angle |
| Wavelength - Dominant | 620nm Red, 527nm Green, 470nm Blue |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 1206 (3216 Metric) |
| Supplier Device Package | 1206 |
| Size / Dimension | 3.20mm L x 1.30mm W |
| Height (Max) | 1.10mm |
| Base Product Number | QBLP615 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|
| Part Number | QBLP615-RGB-2943 | QBLP610-AG | QBLP610-IB | QBLP610-IG |
| Manufacturer | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED RGB DIFFUSED 1206 SMD R/A | LED GREEN CLEAR 1206 SMD R/A | LED BLUE CLEAR 1206 SMD R/A | LED GREEN CLEAR 1206 SMD R/A |
| Series | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
