QBLP631-YG15
lmages are for reference only.QBLP631-YG15
0805 LED GREEN 569NM DOMINANT, 5
Datasheet0805 (2012 Metric)
75,981 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Green 569nm LED Indication - Discrete 2V 0805 (2012 Metric)
QBLP631-YG15
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | QT Brightek (QTB) |
| Series | QBLP631 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Green |
| Configuration | Independent |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 4mcd |
| Lens Style | Square with Flat Top |
| Lens Size | 1.30mm x 1.25mm |
| Voltage - Forward (Vf) (Typ) | 2V |
| Current - Test | 5mA |
| Viewing Angle | 140° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 569nm |
| Wavelength - Peak | 565nm |
| Features | - |
| Package / Case | 0805 (2012 Metric) |
| Supplier Device Package | 0805 |
| Size / Dimension | 2.00mm L x 1.25mm W |
| Height (Max) | 0.90mm |
| Base Product Number | QBLP631 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

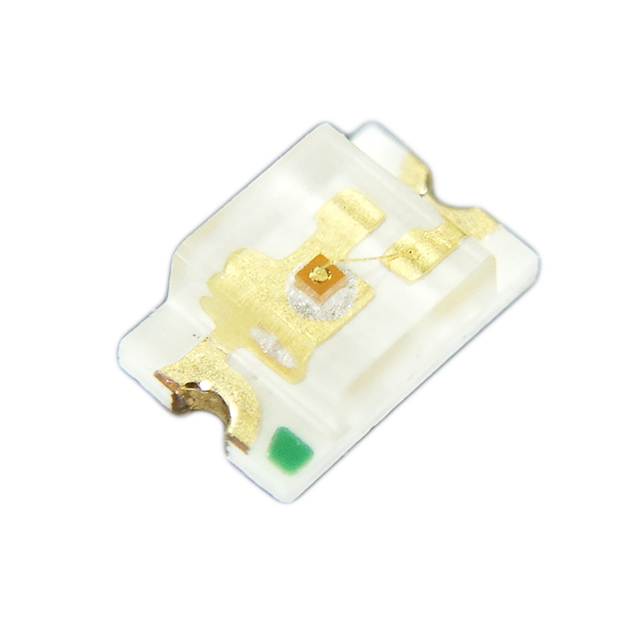

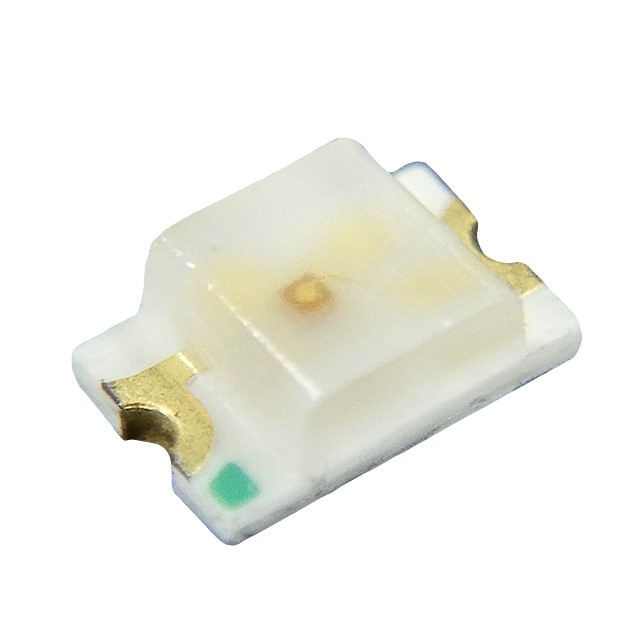

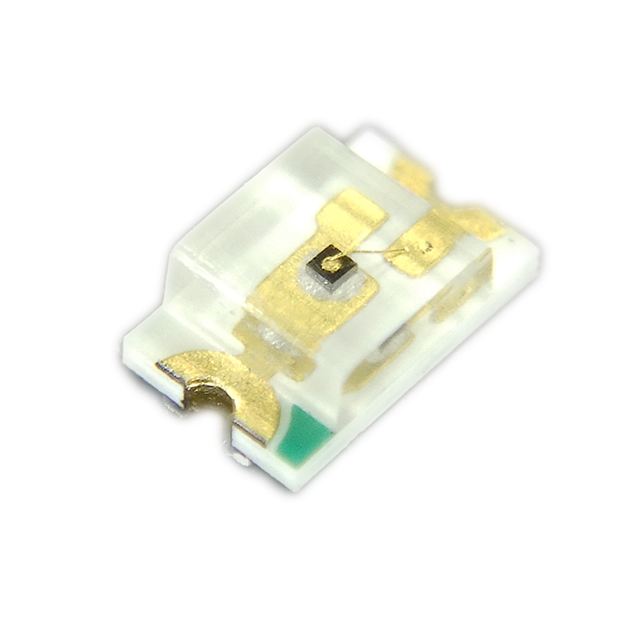

| Part Number | QBLP631-YG1 | QBLP631-YG1-2943 | QBLP631-YG1A | QBLP631-Y |
| Manufacturer | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 0805 LED GREEN 568NM DOMINANT, 5 | 0805 LED RED 570NM DOMINANT, 565 | 0805 LED GREEN 569NM DOMINANT, 5 | LED YELLOW CLEAR 0805 SMD |
| Series | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
