QBLP653-RAGUV
lmages are for reference only.QBLP653-RAGUV
LED RED/UV/YLW-GRN CLR 1208 SMD
Datasheet1209 (3224 Metric)
27,568 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Red, UV, Yellow-Green 630nm Red, 428nm UV, 570nm Yellow-Green LED Indication - Discrete 2V Red, 2V UV, 2V Yellow-Green 1209 (3224 Metric)
QBLP653-RAGUV
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | QT Brightek (QTB) |
| Series | QBLP653 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Red, UV, Yellow-Green |
| Configuration | Common Anode |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 50mcd Red, 1mcd UV, 32mcd Yellow-Green |
| Lens Style | Round with Domed Top |
| Lens Size | 1.80mm Dia |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2V UV, 2V Yellow-Green |
| Current - Test | 20mA Red, 20mA UV, 20mA Yellow-Green |
| Viewing Angle | 60° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 630nm Red, 428nm UV, 570nm Yellow-Green |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 1209 (3224 Metric) |
| Supplier Device Package | 1208 |
| Size / Dimension | 3.20mm L x 2.40mm W |
| Height (Max) | 2.60mm |
| Base Product Number | QBLP653 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

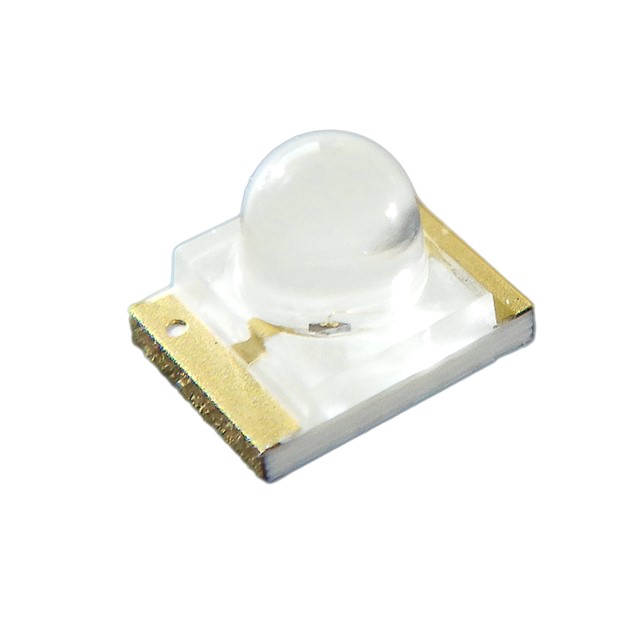

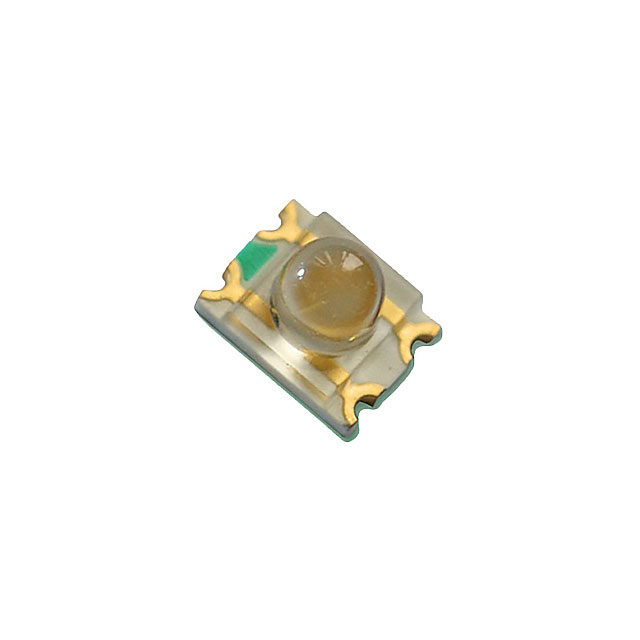

| Part Number | QBLP653-RAG | QBLP653-AG | QBLP653-AG1 | QBLP653-AG15 |
| Manufacturer | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED GREEN/RED CLEAR 1208 SMD | LED YLW-GRN CLEAR 1208 SMD | LED GREEN CLEAR 1208 SMD | LED GREEN CLEAR 1208 SMD |
| Series | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) | QT Brightek (QTB) |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
