QCCP501Q2R7B1GV001T
lmages are for reference only.QCCP501Q2R7B1GV001T
CAP CER 2.7PF 500V C0G/NP0 0603
Datasheet0603 (1608 Metric)
39,073 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.7 pF ±0.1pF 500V Ceramic Capacitor C0G, NP0 0603 (1608 Metric)
QCCP501Q2R7B1GV001T
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Johanson Technology Inc. |
| Series | C |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 2.7 pF |
| Tolerance | ±0.1pF |
| Voltage - Rated | 500V |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 150°C |
| Features | High Q, Low Loss |
| Ratings | - |
| Applications | RF, Microwave, High Frequency |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension | 0.062" L x 0.032" W (1.57mm x 0.81mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.035" (0.89mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | QCCP501Q |
| Product Attribute |  |
 |
 |
 |
| Part Number | QCCP501Q200J1GV001T | QCCP501Q220J1GV001T | QCCP501Q240J1GV001T | QCCP501Q270J1GV001T |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

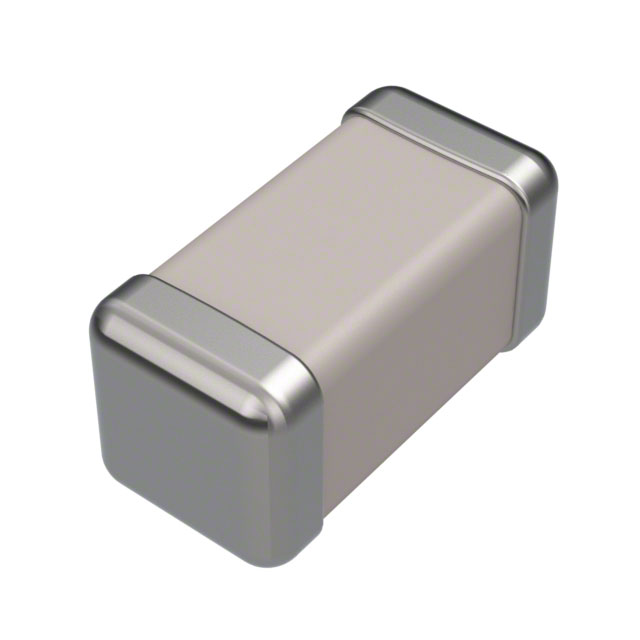

| Description | CAP CER 20PF 500V C0G/NP0 0603 | CAP CER 22PF 500V C0G/NP0 0603 | CAP CER 24PF 500V C0G/NP0 0603 | CAP CER 27PF 500V C0G/NP0 0603 |
| Series | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
