QCS-332+
lmages are for reference only.QCS-332+
RF PWR DVDR 1.8GHZ-3.3GHZ 0805
Datasheet0805 (2012 Metric), 6 PC Pad
93,859 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Power Divider 1.8 GHz ~ 3.3 GHz Isolation (Min) 18dB, 5° Imbalance (Max) 0805 (2012 Metric), 6 PC Pad
QCS-332+
| Category | RF and Wireless - RF Power Dividers-Splitters - |
| Manufacturer | Mini-Circuits |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Insertion Loss | 0.7dB |
| Frequency | 1.8 GHz ~ 3.3 GHz |
| Specifications | Isolation (Min) 18dB, 5° Imbalance (Max) |
| Size / Dimension | 0.079" L x 0.049" W x 0.042" H (2.00mm x 1.25mm x 1.07mm) |
| Package / Case | 0805 (2012 Metric), 6 PC Pad |
| Base Product Number | - |
| Product Attribute |  |
|
|
 |

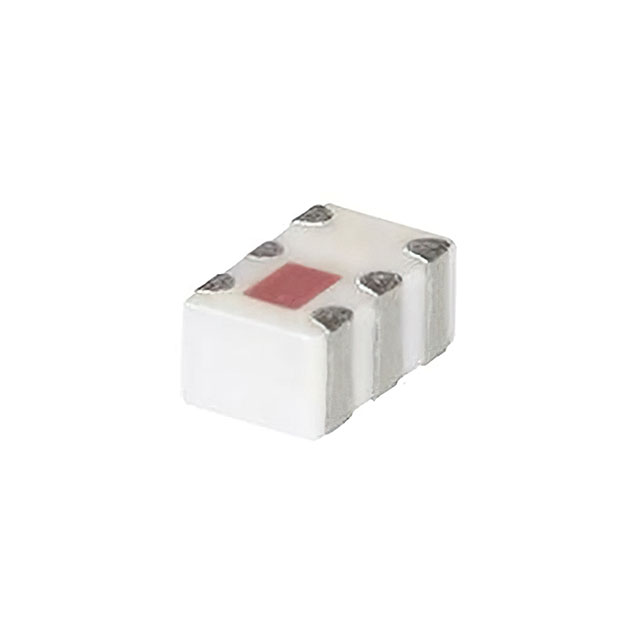

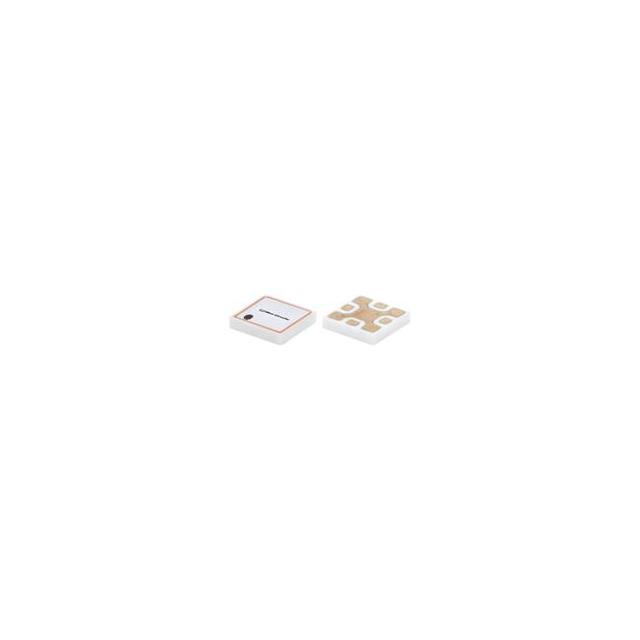

| Part Number | QCS-312+ | QCS-312+ | QCS-332+ | QCC-20+ |
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | RF PWR DVDR 1.7GHZ-3.1GHZ 0805 | RF PWR DVDR 1.7GHZ-3.1GHZ 0805 | RF PWR DVDR 1.8GHZ-3.3GHZ 0805 | LTCC 90 HYBRID, 1200 - 2200 MHZ |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
