QD48T018033-NDB0G
lmages are for reference only.QD48T018033-NDB0G
DC DC CONVERTER 1.8V 3.3V 77W
Datasheet7-DIP Module, 1/4 Brick
24,805 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 1.8V 3.3V 15A, 15A 36V - 75V Input
QD48T018033-NDB0G
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Bel Power Solutions |
| Series | QD48 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 1.8V |
| Voltage - Output 2 | 3.3V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 15A, 15A |
| Power (Watts) | 77 W |
| Applications | ITE (Commercial) |
| Features | Remote On/Off, OCP, OTP, OVP, SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 87% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module, 1/4 Brick |
| Size / Dimension | 2.30" L x 1.45" W x 0.40" H (58.4mm x 36.8mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | QD48T018033 |
| Voltage - Isolation | 2 kV |
| Product Attribute |  |
 |
|
 |

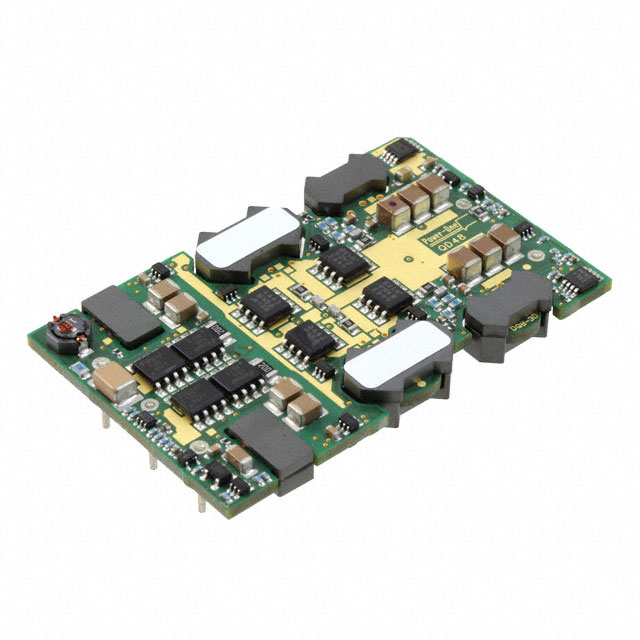

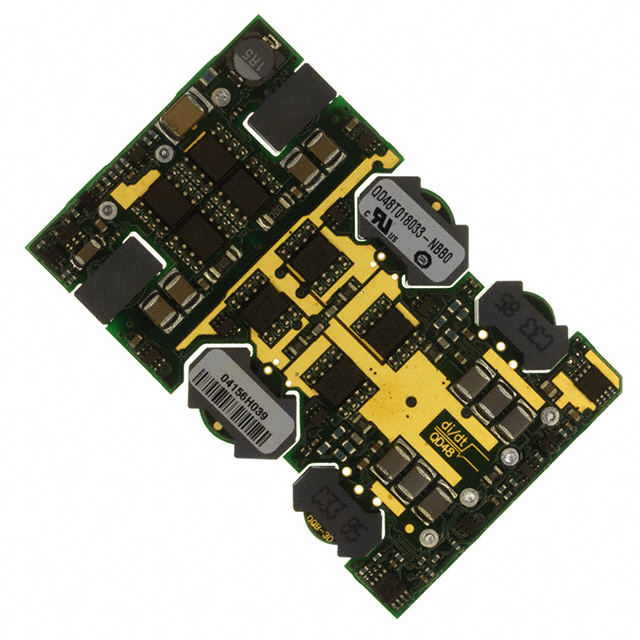

| Part Number | QD48T018033-NBA0 | QD48T018033-NBB0 | QD48T018033-NBB0G | QD48T018033-NCC0 |
| Manufacturer | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS non-compliant |
| Description | DC DC CONVERTER 1.8V 3.3V 77W | DC DC CONVERTER 1.8V 3.3V 49W | DC DC CONVERTER 1.8V 3.3V 77W | DC DC CONVERTER 1.8V 3.3V 77W |
| Series | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| Packaging | Bulk | Tray | Bulk | Bulk |
