QEDB102Q300F1GV001E

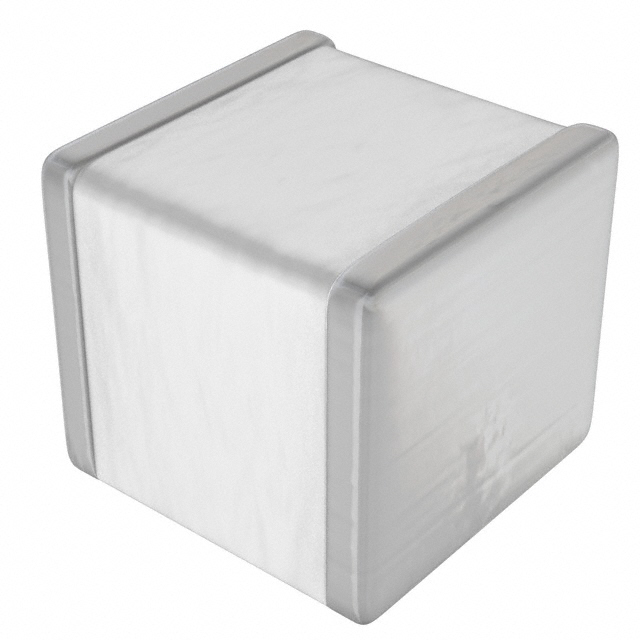

lmages are for reference only.QEDB102Q300F1GV001E
CAP CER 30PF 1KV NP0 1111
Datasheet1111 (2828 Metric)
40,307 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
30 pF ±1% 1000V (1kV) Ceramic Capacitor C0G, NP0 1111 (2828 Metric)
QEDB102Q300F1GV001E
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Johanson Technology Inc. |
| Series | E |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 30 pF |
| Tolerance | ±1% |
| Voltage - Rated | 1000V (1kV) |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Q, Low Loss, High Voltage |
| Ratings | - |
| Applications | RF, Microwave, High Frequency |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1111 (2828 Metric) |
| Size / Dimension | 0.110" L x 0.110" W (2.79mm x 2.79mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.102" (2.59mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Failure Rate | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | QEDB102Q300G1GV001E | QEDB102Q300J1GV001E | QEDB102Q300K1GV001E | QEDB102Q330F1GV001E |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 30PF 1KV NP0 1111 | CAP CER 30PF 1KV NP0 1111 | CAP CER 30PF 1KV NP0 1111 | CAP CER 33PF 1KV NP0 1111 |
| Series | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
