QEDB501Q2R2D1GV001E
lmages are for reference only.QEDB501Q2R2D1GV001E
CAP CER 2.2PF 500V NP0 1111
Datasheet1111 (2828 Metric)
37,559 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
2.2 pF ±0.5pF 500V Ceramic Capacitor C0G, NP0 1111 (2828 Metric)
QEDB501Q2R2D1GV001E
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Johanson Technology Inc. |
| Series | |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Mfr | Johanson Technology Inc. |
| Series | E |
| Capacitance | 2.2 pF |
| Tolerance | ±0.5pF |
| Voltage - Rated | 500V |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Q, Low Loss, High Voltage |
| Ratings | - |
| Applications | RF, Microwave, High Frequency |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1111 (2828 Metric) |
| Size / Dimension | 0.110" L x 0.110" W (2.79mm x 2.79mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.102" (2.59mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

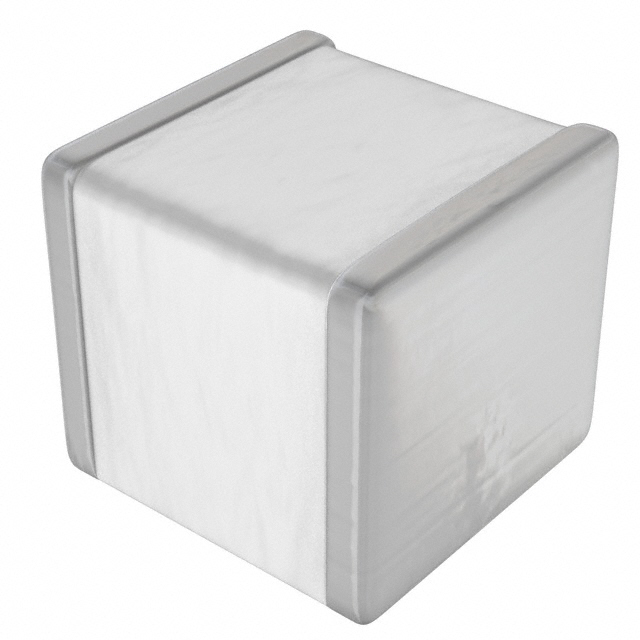

| Part Number | QEDB501Q200F1GV001E | QEDB501Q200G1GV001E | QEDB501Q200J1GV001E | QEDB501Q200K1GV001E |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 20PF 500V NP0 1111 | CAP CER 20PF 500V NP0 1111 | CAP CER 20PF 500V C0G/NP0 1111 | CAP CER 20PF 500V NP0 1111 |
| Series | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
