QEDB501Q6R8B1GV001E

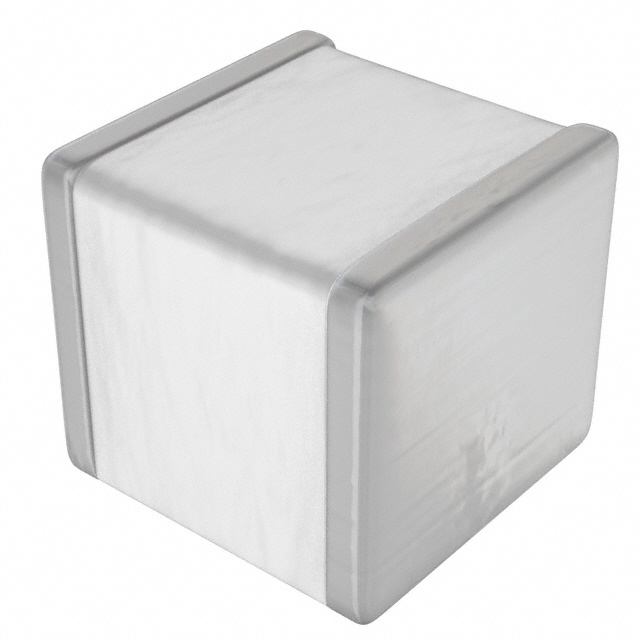

lmages are for reference only.QEDB501Q6R8B1GV001E
CAP CER 6.8PF 500V NP0 1111
Datasheet1111 (2828 Metric)
19,570 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6.8 pF ±0.1pF 500V Ceramic Capacitor C0G, NP0 1111 (2828 Metric)
QEDB501Q6R8B1GV001E
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Johanson Technology Inc. |
| Series | E |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 6.8 pF |
| Tolerance | ±0.1pF |
| Voltage - Rated | 500V |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Q, Low Loss, High Voltage |
| Ratings | - |
| Applications | RF, Microwave, High Frequency |
| Failure Rate | - |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1111 (2828 Metric) |
| Size / Dimension | 0.110" L x 0.110" W (2.79mm x 2.79mm) |
| Thickness (Max) | 0.102" (2.59mm) |
| Lead Spacing | - |
| Lead Style | - |
| Height - Seated (Max) | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | QEDB501Q620F1GV001E | QEDB501Q620G1GV001E | QEDB501Q620J1GV001E | QEDB501Q620K1GV001E |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 62PF 500V NP0 1111 | CAP CER 62PF 500V NP0 1111 | CAP CER 62PF 500V NP0 1111 | CAP CER 62PF 500V NP0 1111 |
| Series | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
