QSCF201Q5R6B1GV001T
lmages are for reference only.QSCF201Q5R6B1GV001T
CAP CER 5.6PF 200V C0G/NP0 0402
Datasheet0402 (1005 Metric)
19,720 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5.6 pF ±0.1pF 200V Ceramic Capacitor C0G, NP0 0402 (1005 Metric)
QSCF201Q5R6B1GV001T
| Category | Capacitors - Ceramic Capacitors - |
| Manufacturer | Johanson Technology Inc. |
| Series | S |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 5.6 pF |
| Tolerance | ±0.1pF |
| Voltage - Rated | 200V |
| Temperature Coefficient | C0G, NP0 |
| Operating Temperature | -55°C ~ 125°C |
| Features | High Q, Low Loss, Ultra Low ESR |
| Ratings | - |
| Applications | RF, Microwave, High Frequency |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 0402 (1005 Metric) |
| Size / Dimension | 0.040" L x 0.020" W (1.02mm x 0.51mm) |
| Height - Seated (Max) | - |
| Thickness (Max) | 0.024" (0.61mm) |
| Lead Spacing | - |
| Lead Style | - |
| Base Product Number | - |
| Failure Rate | - |
| Product Attribute |  |
 |
 |
 |

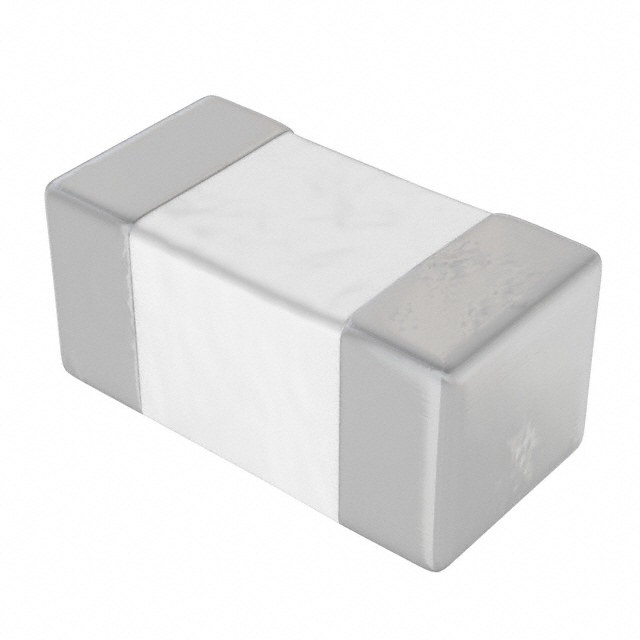

| Part Number | QSCF201Q5R1B1GV001T | QSCF201Q0R2A1GV001T | QSCF201Q0R2B1GV001T | QSCF201Q0R3A1GV001T |
| Manufacturer | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP CER 5.1PF 200V C0G/NP0 0402 | CAP CER 0.2PF 200V NP0 0402 | CAP CER 0.2PF 200V NP0 0402 | CAP CER 0.3PF 200V NP0 0402 |
| Series | Johanson Technology Inc. | Johanson Technology Inc. | Johanson Technology Inc. | |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
