R1173H181D-T1-FE
lmages are for reference only.R1173H181D-T1-FE
IC REG LINEAR 1.8V 1A SOT89-5
DatasheetSOT-89-5/6
24,499 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-89-5
R1173H181D-T1-FE
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Series | R1173x |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.32V @ 1A |
| Current - Output | 1A |
| Current - Quiescent (Iq) | 100 µA |
| PSRR | 70dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-89-5/6 |
| Supplier Device Package | SOT-89-5 |
| Base Product Number | R1173 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |

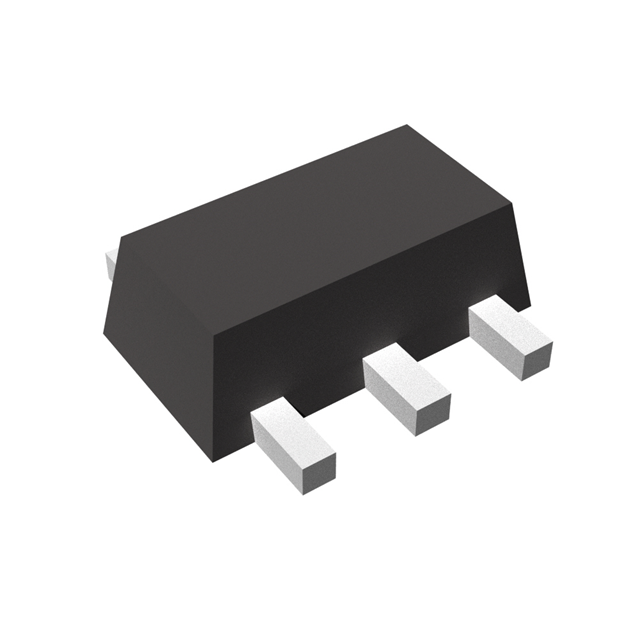

| Part Number | R1173H001B-T1-FE | R1173H001D-T1-FE | R1173H081B-T1-FE | R1173H081D-T1-FE |
| Manufacturer | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | IC REG LINEAR POS ADJ 1A SOT89-5 | IC REG LINEAR POS ADJ 1A SOT89-5 | IC REG LINEAR 0.8V 1A SOT89-5 | IC REG LINEAR 0.8V 1A SOT89-5 |
| Series | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
