R1240N001B-TR-FE
lmages are for reference only.R1240N001B-TR-FE
PWM STEP-DOWN DCDC CONVERTER
DatasheetSOT-23-6
69,728 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Buck Regulator Positive Output Step-Down DC-DC Controller IC SOT-23-6W
R1240N001B-TR-FE
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Type | PWM |
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 30V |
| Frequency - Switching | 1.25MHz |
| Duty Cycle (Max) | 85% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 |
| Supplier Device Package | SOT-23-6W |
| Base Product Number | R1240 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

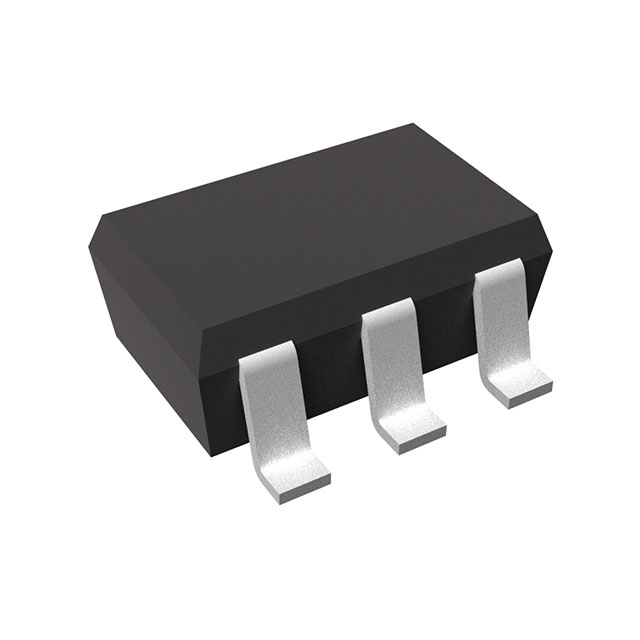

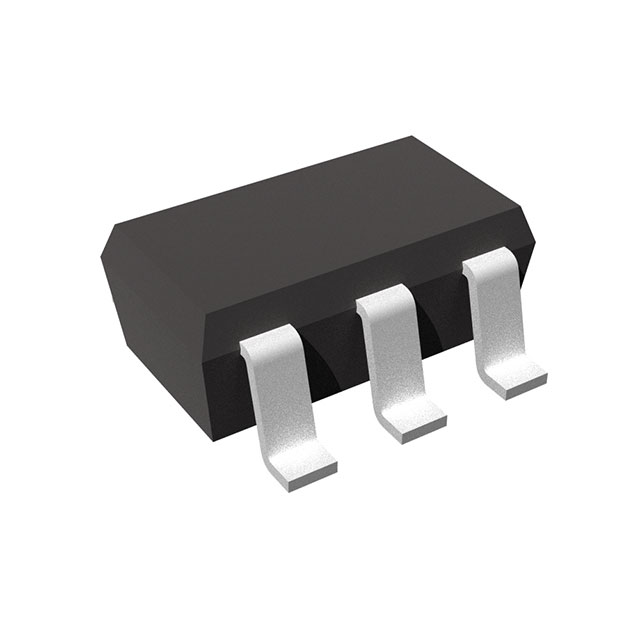

| Part Number | R1224N152E-TR-FE | R1224N552G-TR-FE | RT8202AGQW | R1225N162D-TR-FE |
| Manufacturer | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Richtek USA Inc. | Nisshinbo Micro Devices Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | 18.5V INPUT PWM/VFM STEP-DOWN DC | 18.5V INPUT PWM/VFM STEP-DOWN DC | IC REG CTRLR BUCK 16WQFN | 18.5V INPUT PWM/VFM STEP-DOWN DC |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
