R1510S001B-E2-FE

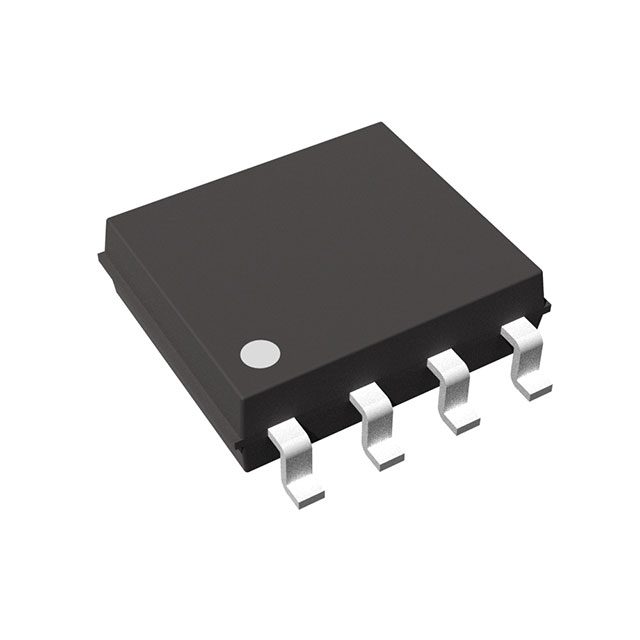

lmages are for reference only.R1510S001B-E2-FE
IC REG LINEAR 3.3V 300MA 8HSOP
Datasheet8-SOIC (0.173", 4.40mm Width) Exposed Pad
11,391 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA 8-HSOP-E
R1510S001B-E2-FE
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Series | R1510S |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 36V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 3.2V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 174 µA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 8-HSOP-E |
| Base Product Number | R1510 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | R1510S001A-E2-FE | R1510S001C-E2-FE | R1510S001D-E2-FE | R1510S002A-E2-FE |
| Manufacturer | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | IC REG LINEAR 3.3V 300MA 8HSOP | IC REG LINEAR 3.3V 300MA 8HSOP | IC REG LINEAR 3.3V 300MA 8HSOP | IC REG LINEAR 2.5V 300MA 8HSOP |
| Series | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
