R1540S001B-E2-FE
lmages are for reference only.R1540S001B-E2-FE
IC REG LINEAR POS ADJ 70MA 8HSOP
Datasheet8-SOIC (0.173", 4.40mm Width) Exposed Pad
18,618 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Adjustable 1 Output 70mA 8-HSOP-E
R1540S001B-E2-FE
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Series | R1540x |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 42V |
| Voltage - Output (Min/Fixed) | 2.2V |
| Voltage - Output (Max) | 14V |
| Voltage Dropout (Max) | 2.1V @ 70mA |
| Current - Output | 70mA |
| Current - Quiescent (Iq) | 100 µA |
| PSRR | 80dB (100Hz) |
| Control Features | Current Limit, Enable |
| Protection Features | Over Current, Short Circuit |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 8-HSOP-E |
| Base Product Number | R1540 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | R1540S001B-E2-KE | RP103Q231D-TR-FE | R1154H001C-T1-FE | RN5RF16BA-TR-FE |
| Manufacturer | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | ROHS3 Compliant | RoHS Compliant |

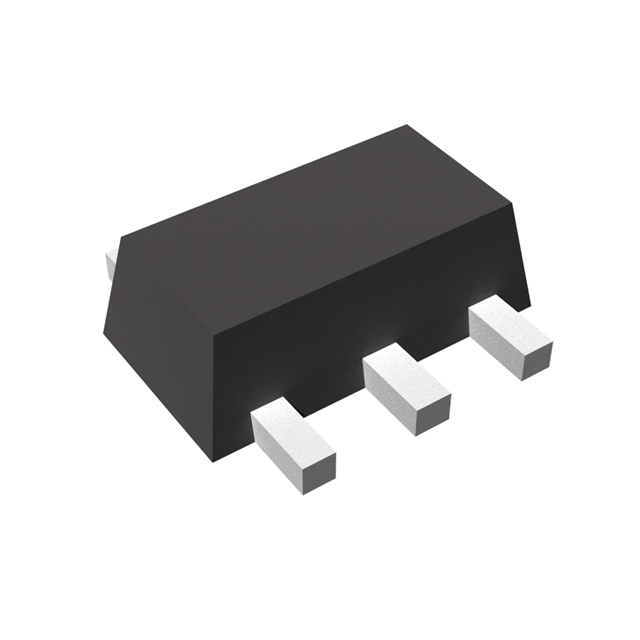

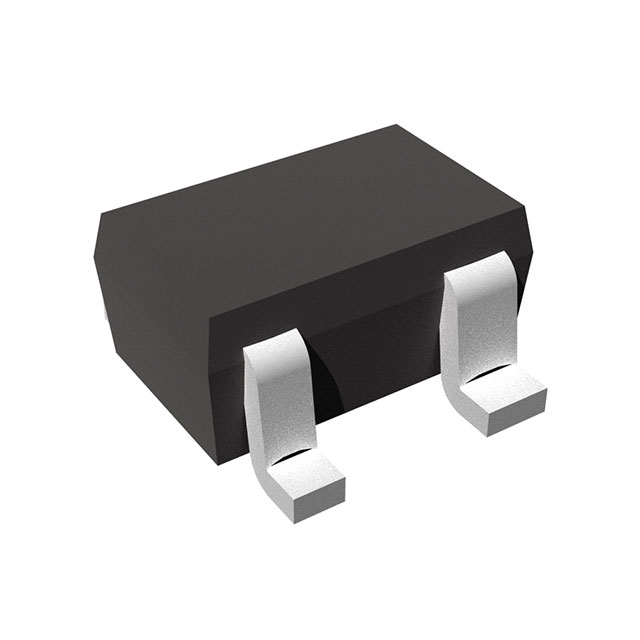

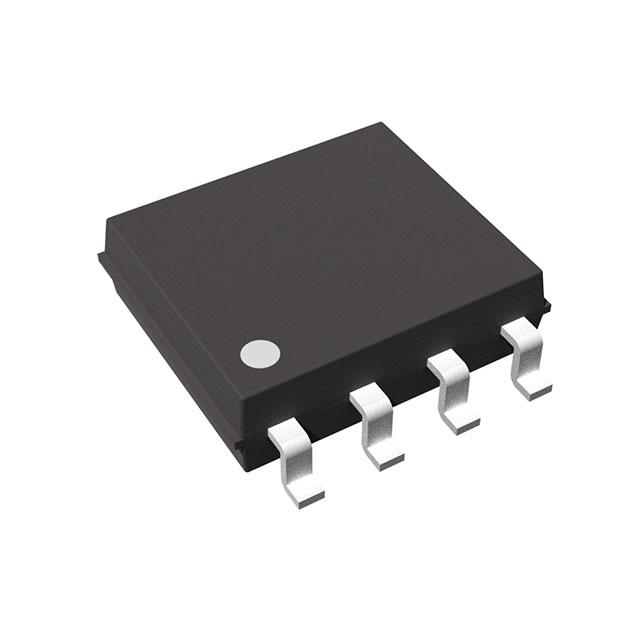

| Description | IC REG LINEAR POS ADJ 70MA 8HSOP | IC REG LINEAR 2.3V 150MA SC82AB | IC REG LIN POS ADJ 150MA SOT89-5 | IC REG LINEAR 1.6V 1A SOT23-5 |
| Series | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
