Product CatalogPart Number
R24-100B
Manufacturer
Recom PowerDescription
DC DC CONVERTER 56-135V 5W
Datasheet
DatasheetPackage
24-DIP Module
In Stock
12,127 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation

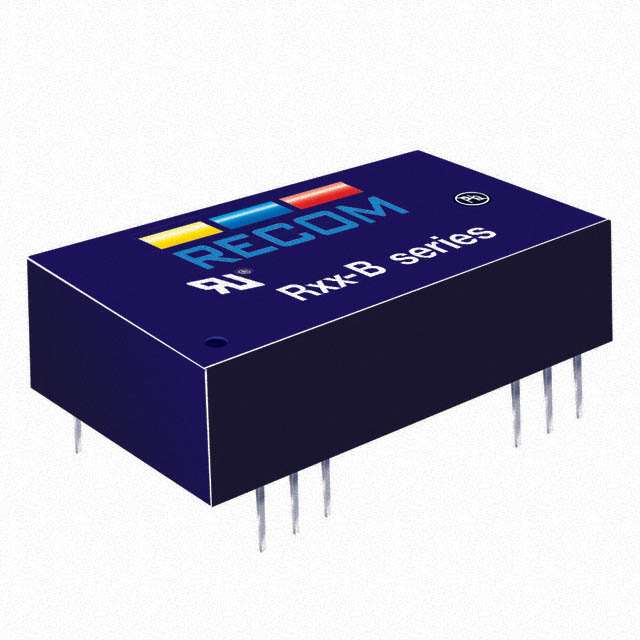

R24-100B
R24-100B
lmages are for reference only.Payment Methods
Delivery Services
High Voltage - Isolated Module DC DC Converter 1 Output 56 ~ 135V 50mA 21V - 27V Input
Quick Inquiry
R24-100B
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Recom Power |
| Series | INNOLINE Rxx-B (5W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | High Voltage - Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 21V |
| Voltage - Input (Max) | 27V |
| Voltage - Output 1 | 56 ~ 135V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 50mA |
| Power (Watts) | 5 W |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 84% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module |
| Size / Dimension | 1.25" L x 0.80" W x 0.37" H (31.8mm x 20.3mm x 9.4mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CE, EAC |
| Standard Number | - |
| Base Product Number | R24-100 |
| Voltage - Isolation | 3 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | R24-150B | R24C2T25-CT | R24C2T25-R | R24C2T25/R-CT |
| Manufacturer | Recom Power | Recom Power | Recom Power | Recom Power |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 92-200V 5W | 2W DC/DC-CONVERTER 'ECONOLINE' S | 2W DC/DC-CONVERTER 'ECONOLINE' S | 2.5W DC/DC-CONVERTER 'ECONOLINE' |
| Series | Recom Power | Recom Power | Recom Power | Recom Power |
| Packaging | Tube | Bag | Tape & Reel (TR)-->Cut Tape (CT) | Bag |
