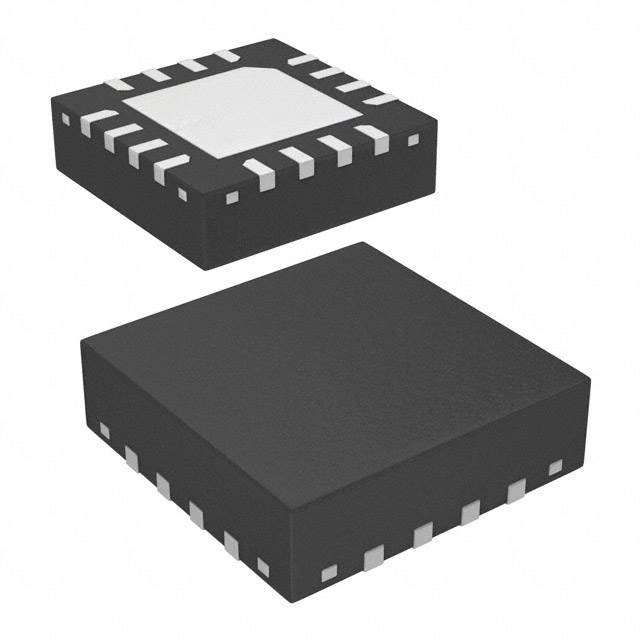

R5F12047ANA#00
lmages are for reference only.R5F12047ANA#00
16BIT MCU RL78/G15 4K 16HWQFN -4
Datasheet16-WFQFN Exposed Pad
27,611 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RL78 RL78/G15 Microcontroller IC 16-Bit 16MHz 4KB (4K x 8) FLASH 16-HWQFN (3x3)
R5F12047ANA#00
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Renesas Electronics Corporation |
| Series | RL78/G15 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Core Processor | RL78 |
| Core Size | 16-Bit |
| Speed | 16MHz |
| Connectivity | CSI, I2C, SPI, UART/USART |
| Peripherals | POR, PWM, WDT |
| Number of I/O | 13 |
| Program Memory Size | 4KB (4K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 1K x 8 |
| RAM Size | 1K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 5.5V |
| Data Converters | A/D 7x8/10b |
| Oscillator Type | External |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 16-HWQFN (3x3) |
| Package / Case | 16-WFQFN Exposed Pad |
| Base Product Number | R5F12047 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |
| Part Number | R5F12047ANA#20 | R5F12047ANA#40 | R5F12047ANA#60 | R5F12047ASP#10 |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

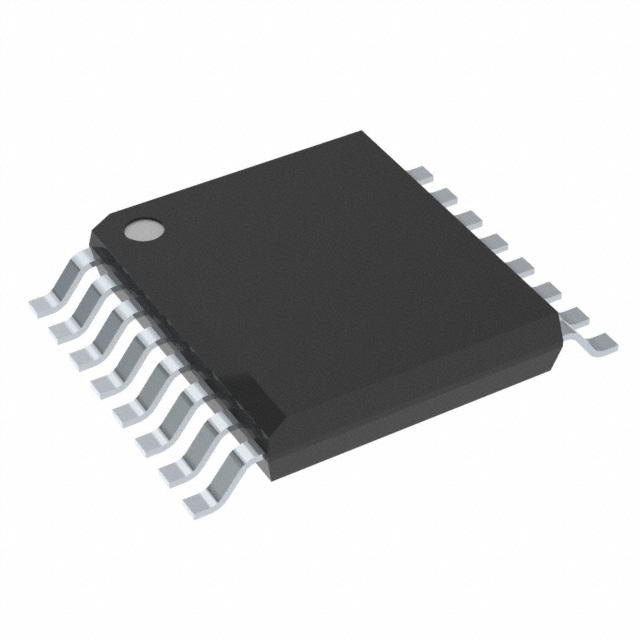

| Description | MCU: RL78 | IC MCU 16BIT 4KB FLASH 16WFQFN | 16BIT MCU RL78/G15 4K 16HWQFN -4 | 16BIT MCU RL78/G15 4K 16SSOP -40 |
| Series | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| Packaging | Tray | Tape & Reel (TR)-->Cut Tape (CT) | Tray | Tray |
