R5F564MJCDFC#11

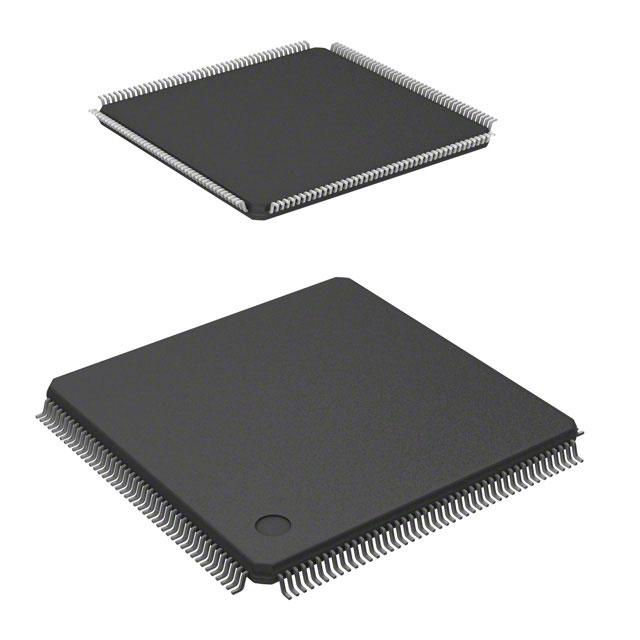

lmages are for reference only.R5F564MJCDFC#11
IC MCU 32BIT 3MB FLASH 176LFQFP
Datasheet176-LQFP
16,630 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RXv2 RX64M Microcontroller IC 32-Bit Single-Core 120MHz 3MB (3M x 8) FLASH 176-LFQFP (24x24)
R5F564MJCDFC#11
| Category | Integrated Circuits (ICs) - Embedded - Microcontrollers |
| Manufacturer | Renesas Electronics Corporation |
| Series | RX64M |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Core Processor | RXv2 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, LINbus, MMC/SD, SCI, SPI, SSI, UART/USART, USB |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 127 |
| Program Memory Size | 3MB (3M x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 64K x 8 |
| RAM Size | 512K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.7V ~ 3.6V |
| Data Converters | A/D 8x12b, 21x12b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 176-LFQFP (24x24) |
| Package / Case | 176-LQFP |
| Base Product Number | R5F564 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | R5F564MJCDFC#31 | R5F564MJCDFC#V1 | R5F564MJCDBG#21 | R5F564MJCDFB#11 |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC MCU 32BIT 3MB FLASH 176LFQFP | IC MCU 32BIT 3MB FLASH 176LFQFP | IC MCU 32BIT 3MB FLASH 176LFBGA | IC MCU 32BIT 3MB FLASH 144LFQFP |
| Series | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| Packaging | Tray | Tray | Tray | Tray |
