R6015ENXC7G
lmages are for reference only.R6015ENXC7G
600V 15A TO-220FM, LOW-NOISE POW
DatasheetTO-220-3 Full Pack
24,839 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 600 V 15A (Tc) 60W (Tc) Through Hole TO-220FM
R6015ENXC7G
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Rohm Semiconductor |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 15A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 290mOhm @ 6.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 910 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 60W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220FM |
| Package / Case | TO-220-3 Full Pack |
| Base Product Number | R6015 |
| Gate Charge (Qg) (Max) @ Vgs | 40 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

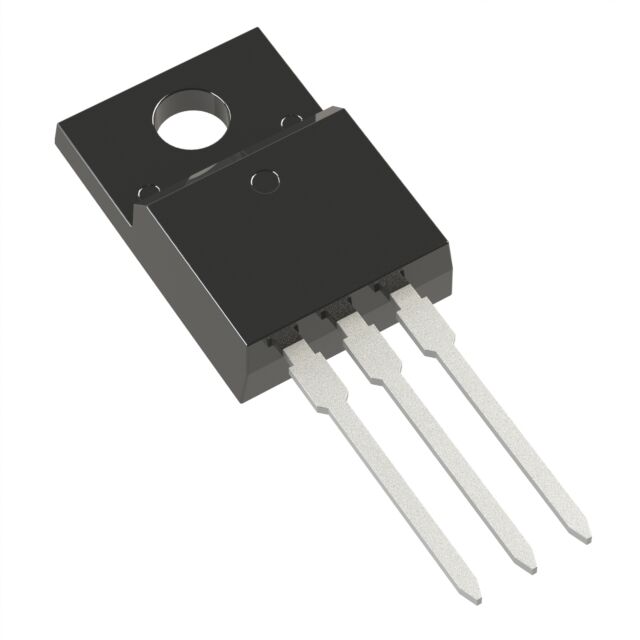

| Part Number | R6015ENX | R6015ANX | R6015ANZC8 | R6015ANZFU7C8 |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 600V 15A TO220FM | MOSFET N-CH 600V 15A TO220FM | MOSFET N-CH 600V 15A TO3PF | MOSFET N-CH 600V 15A TO3 |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Tube | Tube |
