R6504ENJTL
lmages are for reference only.R6504ENJTL
MOSFET N-CH 650V 4A LPTS
DatasheetTO-263-3, D2PAK (2 Leads + Tab), TO-263AB
97,674 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 650 V 4A (Tc) 58W (Tc) Surface Mount LPTS
R6504ENJTL
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Rohm Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 1.05Ohm @ 1.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 130µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 220 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 58W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | LPTS |
| Package / Case | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB |
| Base Product Number | R6504 |
| Gate Charge (Qg) (Max) @ Vgs | 15 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | R6504END3TL1 | R6504ENXC7G | R6502END3TL1 | R6504KND3TL1 |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

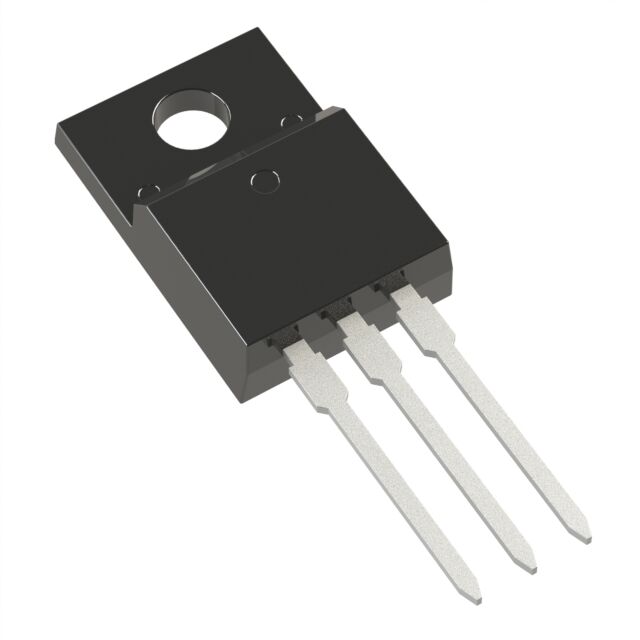

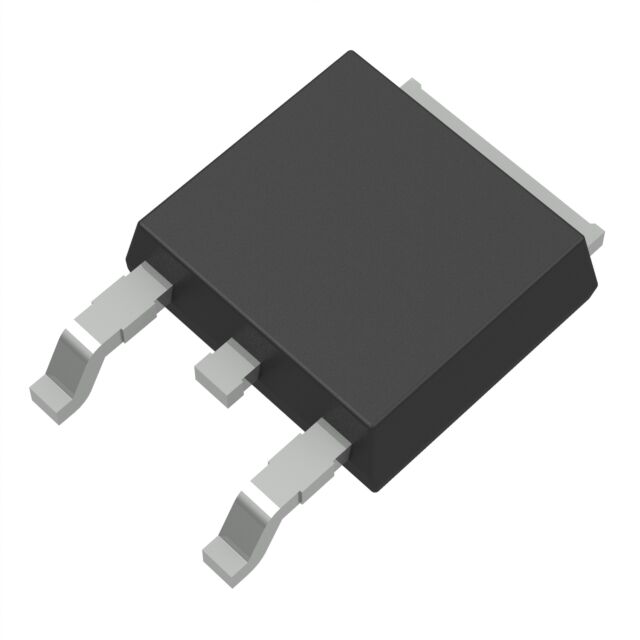

| Description | 650V 4A TO-252, LOW-NOISE POWER | 650V 4A TO-220FM, LOW-NOISE POWE | 650V 1.7A TO-252, LOW-NOISE POWE | HIGH-SPEED SWITCHING, NCH 650V 4 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
