R6511KND3TL1
lmages are for reference only.R6511KND3TL1
HIGH-SPEED SWITCHING, NCH 650V 1
DatasheetTO-252-3, DPAK (2 Leads + Tab), SC-63
62,236 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 650 V 11A (Tc) 124W (Tc) Surface Mount TO-252
R6511KND3TL1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Rohm Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 400mOhm @ 3.8A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 320µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 760 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 124W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252 |
| Package / Case | TO-252-3, DPAK (2 Leads + Tab), SC-63 |
| Base Product Number | R6511 |
| Gate Charge (Qg) (Max) @ Vgs | 22 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|

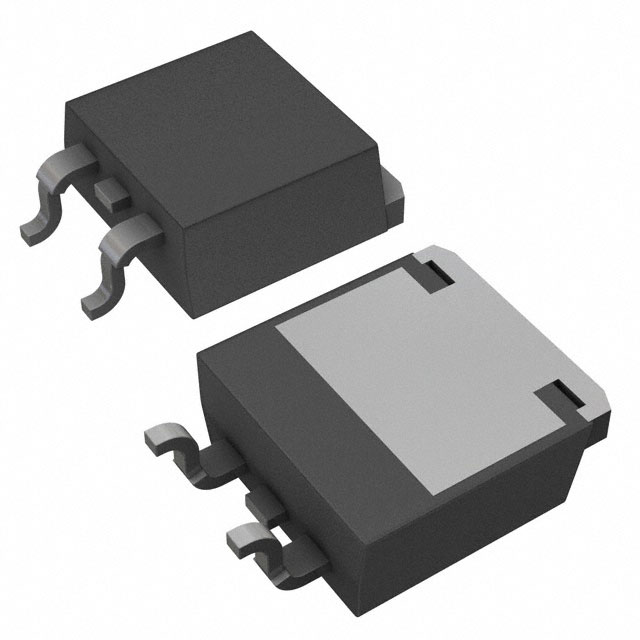

| Part Number | R6511KNJTL | R6511KNXC7G | R6000ENHTB1 | R6002END3TL1 |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 650V 11A LPTS | 650V 11A TO-220FM, HIGH-SPEED SW | 600V 0.5A, SOP8, LOW-NOISE POWER | MOSFET N-CH 600V 1.7A TO252 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
