RC-1

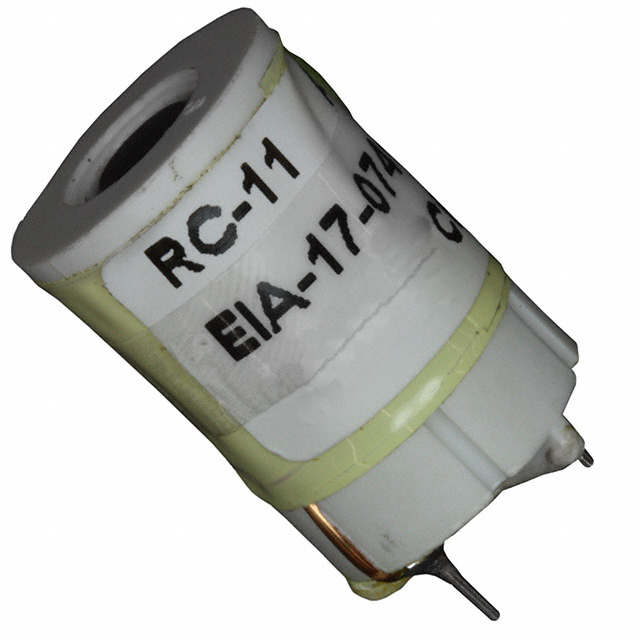

lmages are for reference only.RC-1
FIXED IND 5.6MH 250MA 6.1 OHM TH
DatasheetRadial, Vertical Cylinder
71,391 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
5.6 mH Unshielded Drum Core, Wirewound Inductor 250 mA 6.1Ohm Radial, Vertical Cylinder
RC-1
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Triad Magnetics |
| Series | RC |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 5.6 mH |
| Tolerance | ±10% |
| Current Rating (Amps) | 250 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 6.1Ohm |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 10 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.600" Dia (15.24mm) |
| Height - Seated (Max) | 0.930" (23.62mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | RC-10 | RC-10-B | RC-11 | RC-11-B |
| Manufacturer | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 100UH 2A 98 MOHM TH | FIXED IND 100UH 2A 98 MOHM TH | FIXED IND 75UH 2.5A 70 MOHM TH | FIXED IND 75UH 2.5A 70 MOHM TH |
| Series | Triad Magnetics | Triad Magnetics | Triad Magnetics | Triad Magnetics |
| Packaging | Bulk | Bulk | Bulk | Bulk |
