RCH110NP-121K
lmages are for reference only.RCH110NP-121K
FIXED IND 120UH 1.5A 200 MOHM TH
DatasheetRadial, Vertical Cylinder, 4 Leads (Open)
85,612 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
120 µH Unshielded Drum Core, Wirewound Inductor 1.5 A 200mOhm Max Radial, Vertical Cylinder, 4 Leads (Open)
RCH110NP-121K
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | RCH-110 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 120 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 1.5 A |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 200mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 4.8MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder, 4 Leads (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
|
| Part Number | RCH110NP-100M | RCH110NP-101K | RCH110NP-102K | RCH110NP-120M |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

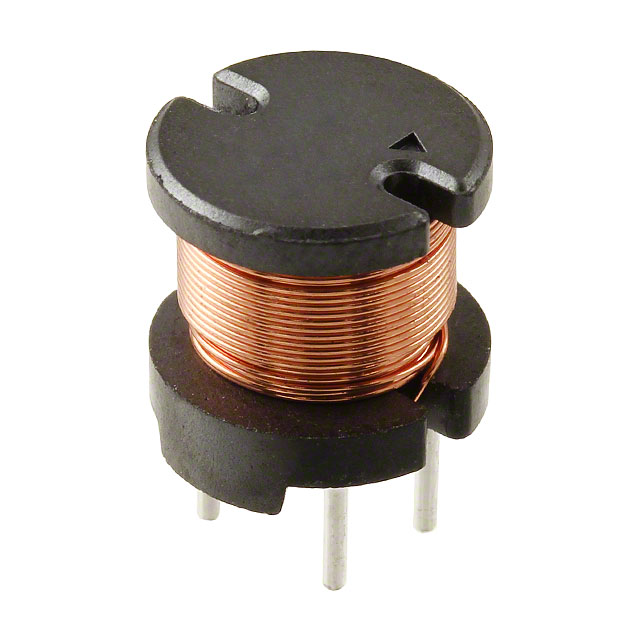

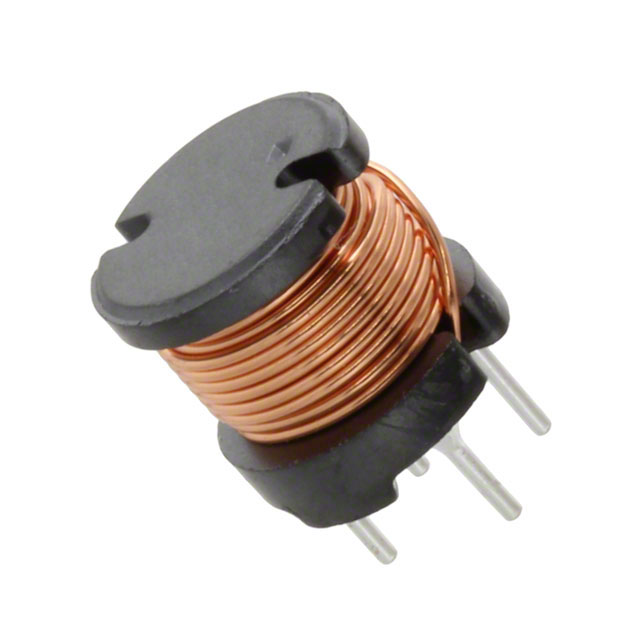

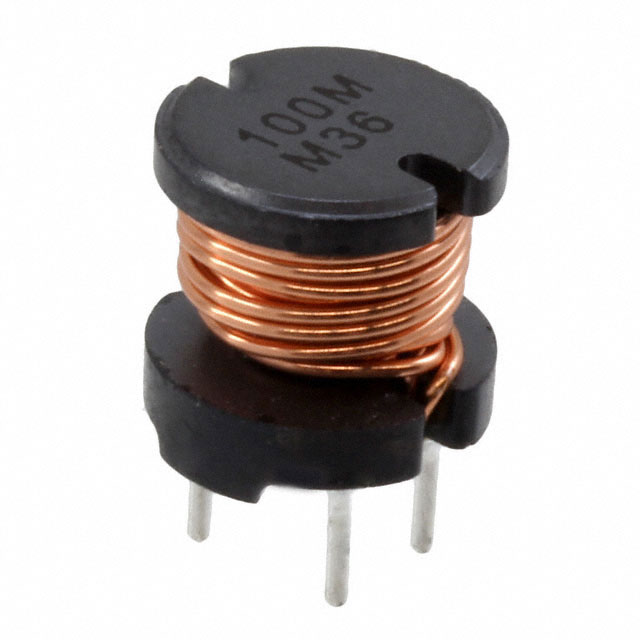

| Description | FIXED IND 10UH 5.3A 22 MOHM TH | FIXED IND 100UH 1.7A 160 MOHM TH | FIXED IND 1MH 530MA 1.7 OHM TH | FIXED IND 12UH 4.9A 23 MOHM TH |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Bulk | Bulk | Bulk | Tape & Reel (TR) |
