RCH895NP-120M
lmages are for reference only.RCH895NP-120M
FIXED IND 12UH 1.9A 40 MOHM TH
DatasheetRadial, Vertical Cylinder (Open)
88,594 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12 µH Unshielded Drum Core, Wirewound Inductor 1.9 A 40mOhm Max Radial, Vertical Cylinder (Open)
RCH895NP-120M
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | RCH-895 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 12 µH |
| Tolerance | ±20% |
| Current Rating (Amps) | 1.9 A |
| Current - Saturation (Isat) | 2.6A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 40mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder (Open) |
| Supplier Device Package | - |
| Size / Dimension | 0.307" Dia (7.80mm) |
| Height - Seated (Max) | 0.374" (9.50mm) |
| Base Product Number | - |
| Product Attribute | |
 |
|
 |

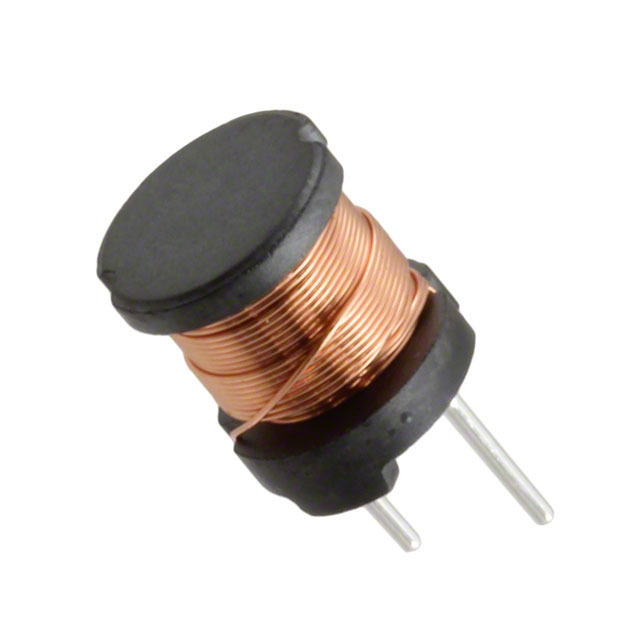

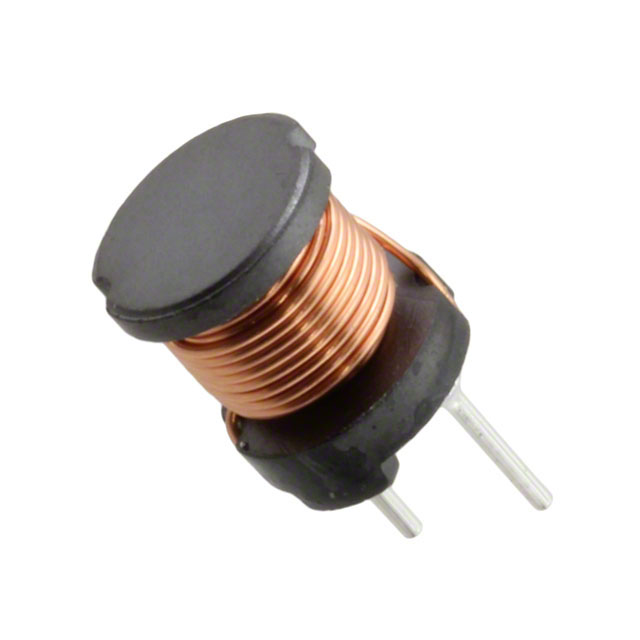

| Part Number | RCH895NP-100M | RCH895NP-101K | RCH895NP-101K | RCH895NP-102K |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 10UH 2A 40 MOHM TH | FIXED IND 100UH 720MA 190MOHM TH | FIXED IND 100UH 720MA 190MOHM TH | FIXED IND 1MH 220MA 1.84 OHM TH |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR) | Bulk | Bulk | Bulk |
