RCLAMP2504P.TCT
lmages are for reference only.RCLAMP2504P.TCT
TVS DIODE 2.5VWM 13VC SLP1616P6
Datasheet6-UFDFN Exposed Pad
52,524 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
13V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SLP1616P6 (1.6x1.6)
RCLAMP2504P.TCT
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Semtech Corporation |
| Series | RailClamp® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Steering (Rail to Rail) |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 2.5V (Max) |
| Voltage - Breakdown (Min) | 2.7V |
| Voltage - Clamping (Max) @ Ipp | 13V |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Power - Peak Pulse | 80W |
| Power Line Protection | Yes |
| Applications | Multimedia Card Interface |
| Capacitance @ Frequency | 0.8pF @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN Exposed Pad |
| Supplier Device Package | SLP1616P6 (1.6x1.6) |
| Base Product Number | RCLAMP2504 |
| Unidirectional Channels | 4 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | RCLAMP2502L.TBT | RCLAMP2504N.TCT | RCLAMP01001ZCFT | RCLAMP01012ZC.F |
| Manufacturer | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||

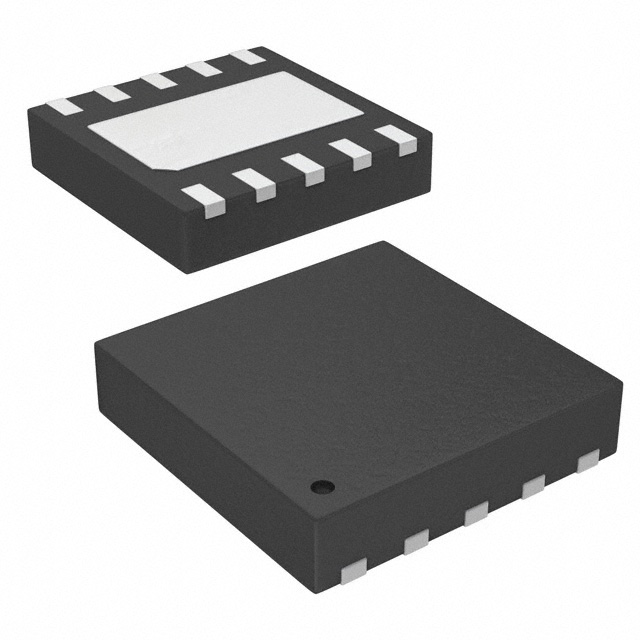

| Description | TVS DIODE 2.5VWM 20VC 8-SOIC | TVS DIODE 2.5VWM 15VC SLP2626P10 | RCLAMP, 1-LINE 1.0V 0.12PF SLP06 | TVS |
| Series | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
