RCLAMP2656P.TGT
lmages are for reference only.RCLAMP2656P.TGT
TVS DIODE 5VWM 20VC SLP2018P6
Datasheet6-UFDFN Exposed Pad
68,837 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
20V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount SLP2018P6
RCLAMP2656P.TGT
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Semtech Corporation |
| Series | RailClamp® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Type | Steering (Rail to Rail) |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6.5V |
| Voltage - Clamping (Max) @ Ipp | 20V |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) |
| Power - Peak Pulse | 60W |
| Power Line Protection | Yes |
| Applications | USB OTG |
| Capacitance @ Frequency | 0.28pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN Exposed Pad |
| Supplier Device Package | SLP2018P6 |
| Base Product Number | RCLAMP2656 |
| Unidirectional Channels | 3 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
 |

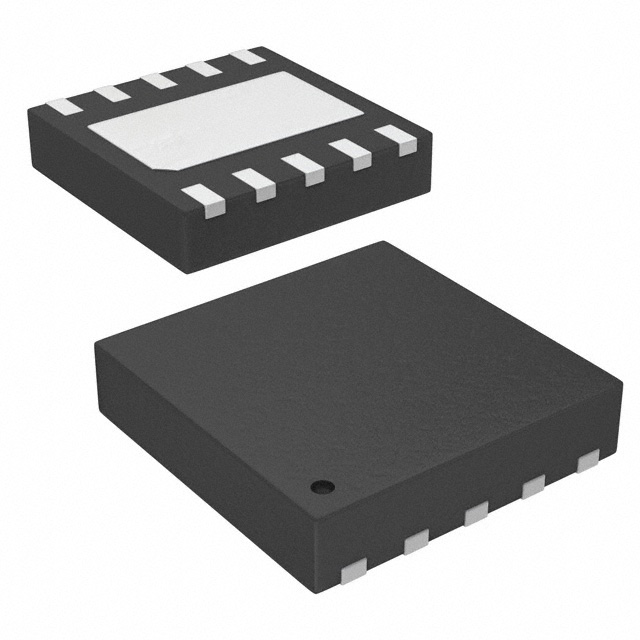

| Part Number | RCLAMP2654P.TCT | RCLAMP01001ZCFT | RCLAMP01012ZC.F | RCLAMP01211ZCFT |
| Manufacturer | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| RoHS Status | RoHS Compliant | |||
| Description | TVS DIODE 4VWM 10VC SLP2626P10 | RCLAMP, 1-LINE 1.0V 0.12PF SLP06 | TVS | 1-LINE 1.2V 0.2PF 2.5A SLP0603P2 |
| Series | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
