RCP1317NP-471L

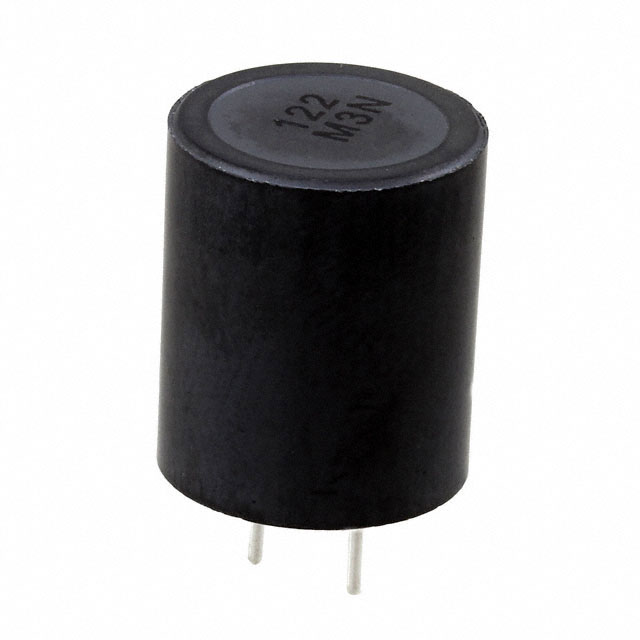

lmages are for reference only.RCP1317NP-471L
FIXED IND 470UH 1.15A 530MOHM TH
DatasheetRadial, Vertical Cylinder
84,051 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
470 µH Shielded Inductor 1.15 A 530mOhm Max Radial, Vertical Cylinder
RCP1317NP-471L
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Sumida America Components Inc. |
| Series | RCP1317 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 470 µH |
| Tolerance | ±15% |
| Current Rating (Amps) | 1.15 A |
| Current - Saturation (Isat) | 1.35A |
| Shielding | Shielded |
| DC Resistance (DCR) | 530mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 1 kHz |
| Features | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Vertical Cylinder |
| Supplier Device Package | - |
| Size / Dimension | 0.531" Dia (13.50mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Base Product Number | - |
| Product Attribute |  |
|
 |
|
| Part Number | RCP1317NP-470M | RCP1317NP-471L | RCP1317NP-472L | RCP1317NP-101M |
| Manufacturer | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 47UH 3.3A 69 MOHM TH | FIXED IND 470UH 1.15A 530MOHM TH | FIXED IND 4.7MH 370MA 5.02OHM TH | FIXED IND 100UH 2.3A 125 MOHM TH |
| Series | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. | Sumida America Components Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
