REC3-4809DRWZ/H2/C/M/SMD
lmages are for reference only.REC3-4809DRWZ/H2/C/M/SMD
DC DC CONVERTER +/-9V 3W
Datasheet24-SMD Module, 18 Leads
54,946 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 9V -9V 165mA, 165mA 18V - 72V Input
REC3-4809DRWZ/H2/C/M/SMD
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Recom Power |
| Series | ECONOLINE REC3-DRW (3W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 72V |
| Voltage - Output 1 | 9V |
| Voltage - Output 2 | -9V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 165mA, 165mA |
| Power (Watts) | 3 W |
| Applications | ITE (Commercial) |
| Features | SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 83% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-SMD Module, 18 Leads |
| Size / Dimension | 1.26" L x 0.78" W x 0.44" H (32.0mm x 19.9mm x 11.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | REC3-4809 |
| Voltage - Isolation | 2 kV |
| Product Attribute |  |
 |
 |
|

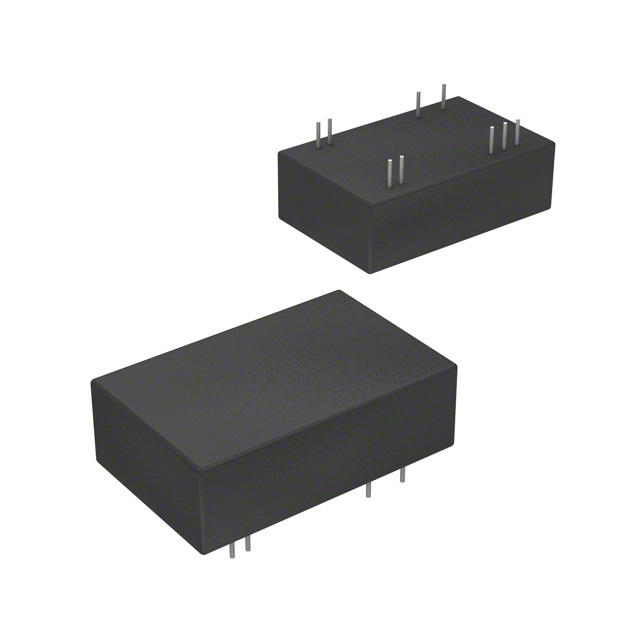

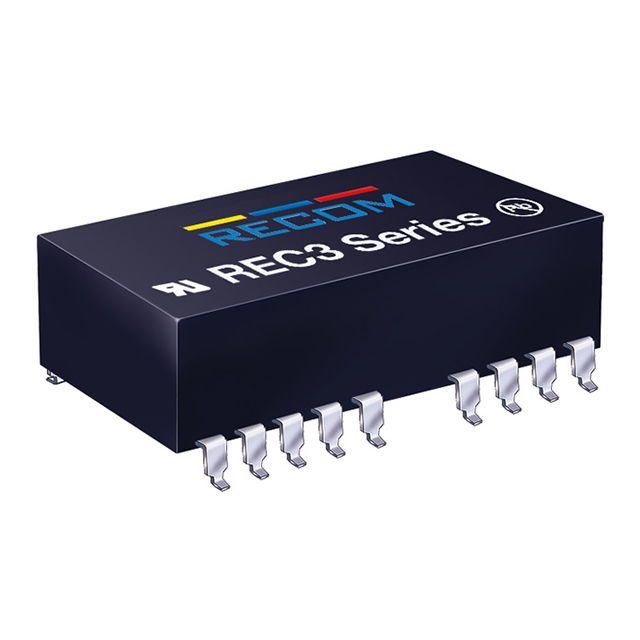

| Part Number | REC3-4809DRWZ/H2/C/M/SMD-R | REC3-4809DRWZ/H2/C | REC3-4809DRWZ/H2/C/M | REC3-4809DRWZ/H2/C/M |
| Manufacturer | Recom Power | Recom Power | Recom Power | Recom Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER +/-9V 3W | DC DC CONVERTER +/-9V 3W | DC DC CONVERTER +/-9V 3W | DC DC CONVERTER +/-9V 3W |
| Series | Recom Power | Recom Power | Recom Power | Recom Power |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube | Tube |
