REC3.5-1215DRW/R8/C/X1

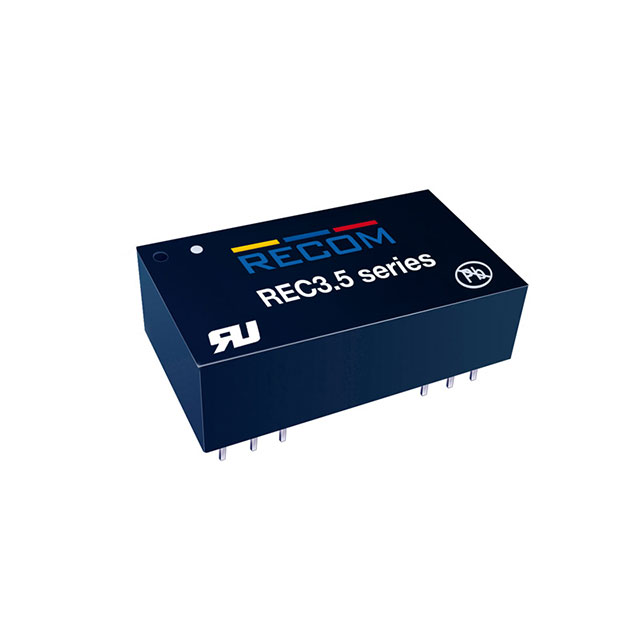

lmages are for reference only.REC3.5-1215DRW/R8/C/X1
DC DC CONVERTER +/-15V 3.5W
Datasheet24-DIP Module, 9 Leads
70,278 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 15V -15V 117mA, 117mA 9V - 18V Input
REC3.5-1215DRW/R8/C/X1
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Recom Power |
| Series | ECONOLINE REC3.5/R (3.5W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 18V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 117mA, 117mA |
| Power (Watts) | 3.5 W |
| Applications | ITE (Commercial), Medical |
| Features | SCP, UVLO |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 82% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 24-DIP Module, 9 Leads |
| Size / Dimension | 1.26" L x 0.80" W x 0.40" H (32.0mm x 20.3mm x 10.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | REC3.5-1215 |
| Voltage - Isolation | 8 kV |
| Product Attribute |  |
|
 |
 |
| Part Number | REC3.5-1215DRW/R8/C | REC3.5-1215DRW/R8/C/X1 | REC3.5-1215DRW/R10/A | REC3.5-1215DRW/R10/A/CTRL |
| Manufacturer | Recom Power | Recom Power | Recom Power | Recom Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER +/-15V 3.5W | DC DC CONVERTER +/-15V 3.5W | DC DC CONVERTER +/-15V 3.5W | DC DC CONVERTER +/-15V 3.5W |
| Series | Recom Power | Recom Power | Recom Power | Recom Power |
| Packaging | Tube | Tube | Tube | Tube |
