REC5-4815SRWZ/H6/A/SMD/CTRL
lmages are for reference only.REC5-4815SRWZ/H6/A/SMD/CTRL
DC DC CONVERTER 15V 5W
Datasheet24-SMD Module, 18 Leads
84,965 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 15V 340mA 18V - 72V Input
REC5-4815SRWZ/H6/A/SMD/CTRL
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Recom Power |
| Series | ECONOLINE REC5 (5W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 72V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 340mA |
| Power (Watts) | 5 W |
| Applications | ITE (Commercial), Medical |
| Features | Remote On/Off, SCP |
| Operating Temperature | -40°C ~ 75°C |
| Efficiency | 85% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-SMD Module, 18 Leads |
| Size / Dimension | 1.26" L x 0.78" W x 0.44" H (32.0mm x 19.9mm x 11.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | REC5-4815 |
| Voltage - Isolation | 6 kV |
| Product Attribute |  |
 |
 |
 |

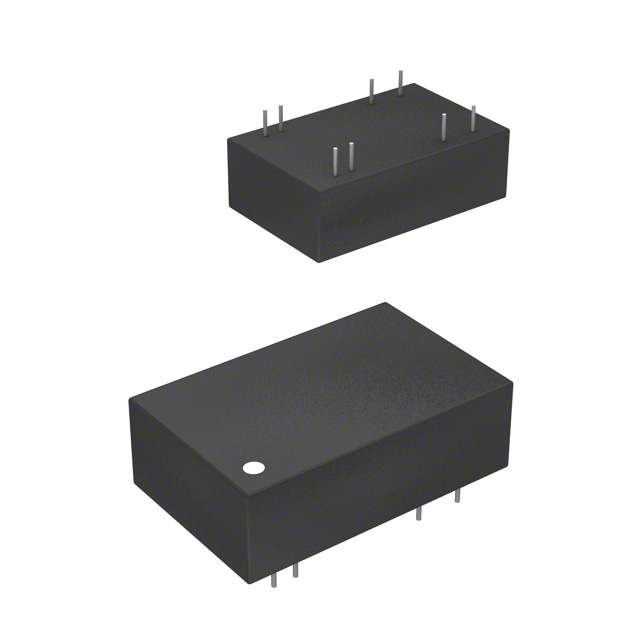

| Part Number | REC5-4815SRWZ/H6/A/SMD | REC5-4815SRWZ/H6/A/SMD-R | REC5-4815SRWZ/H6/A/SMD/CTRL-R | REC5-4815SRWZ/H6/A |
| Manufacturer | Recom Power | Recom Power | Recom Power | Recom Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 15V 5W | DC DC CONVERTER 15V 5W | DC DC CONVERTER 15V 5W | DC DC CONVERTER 15V 5W |
| Series | Recom Power | Recom Power | Recom Power | Recom Power |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
