REC7.5-2415DRW/H2/A/M/SMD/CTRL

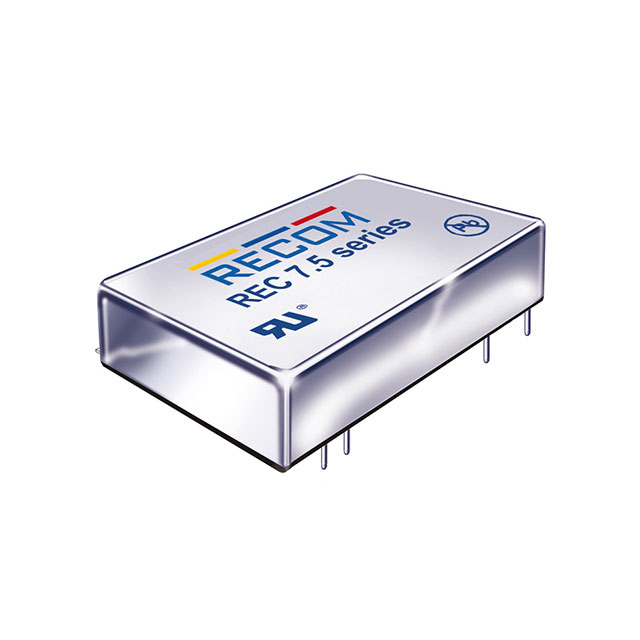

lmages are for reference only.REC7.5-2415DRW/H2/A/M/SMD/CTRL
DC DC CONVERTER +/-15V 8W
Datasheet24-SMD Module, 18 Leads
46,527 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 2 Output 15V -15V 250mA, 250mA 18V - 36V Input
REC7.5-2415DRW/H2/A/M/SMD/CTRL
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Recom Power |
| Series | ECONOLINE REC7.5 (7.5W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 250mA, 250mA |
| Power (Watts) | 8 W |
| Applications | ITE (Commercial), Medical |
| Features | Remote On/Off, SCP |
| Operating Temperature | -40°C ~ 71°C |
| Efficiency | 86% |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 24-SMD Module, 18 Leads |
| Size / Dimension | 1.26" L x 0.78" W x 0.44" H (32.0mm x 19.9mm x 11.2mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | REC7.5-2415 |
| Voltage - Isolation | 2 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | REC7.5-2415DRW/H2/A/M/SMD | REC7.5-2415DRW/H2/A/M/SMD-R | REC7.5-2415DRW/H2/A/M/SMD/CTRL-R | REC7.5-2415DRW/H2/A/M |
| Manufacturer | Recom Power | Recom Power | Recom Power | Recom Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER +/-15V 8W | DC DC CONVERTER +/-15V 8W | DC DC CONVERTER +/-15V 8W | DC DC CONVERTER +/-15V 8W |
| Series | Recom Power | Recom Power | Recom Power | Recom Power |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tube |
