RF1E151MP26311EF7U

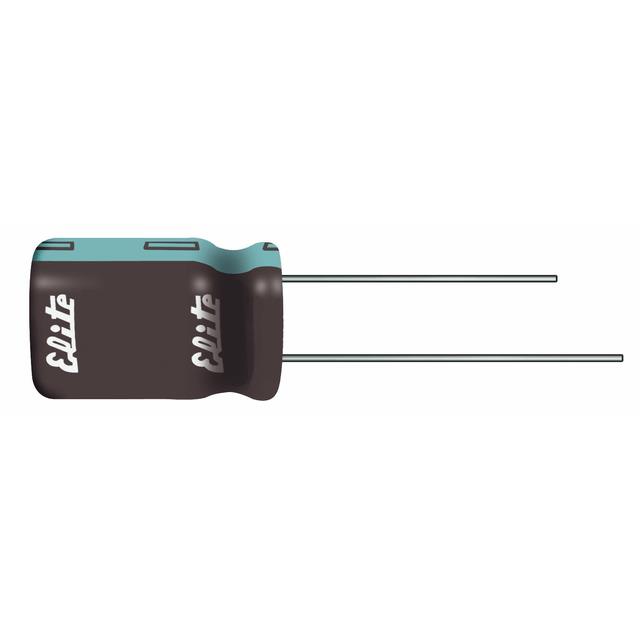

lmages are for reference only.RF1E151MP26311EF7U
CAP ALUM 150UF 20% 25V RADIAL TH
DatasheetRadial, Can
32,461 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
150 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C
RF1E151MP26311EF7U
| Category | Capacitors - Aluminum Electrolytic Capacitors - |
| Manufacturer | Chinsan (Elite) |
| Series | RF |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) |
| RoHS Status | ROHS3 Compliant |
| Capacitance | 150 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 7000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 280 mA @ 120 Hz |
| Ripple Current @ High Frequency | 700 mA @ 100 kHz |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Impedance | 170 mOhms |
| Product Attribute |  |
 |
 |
 |
| Part Number | RF1E151MP56311B2EU | RF1C102MP51016E | RF1C152MP51020B2ER | RF1C152MP51020ER |
| Manufacturer | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ALUMINUM ELECTROLYTIC CAPACITORS | CAP ALUM 1000UF 20% 16V RADIAL | ALUMINUM ELECTROLYTIC CAPACITORS | CAP ALUM 1500UF 20% 16V RADIAL |
| Series | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| Packaging | Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) | Tape & Box (TB) | Cut Tape (CT)-->Tape & Box (TB) |
