Product CatalogPart Number
RHV2-1224S/R20
Manufacturer
Recom PowerDescription
DC DC CONVERTER 24V 2W
Datasheet
DatasheetPackage
16-SIP Module, 4 Leads
In Stock
54,587 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
RHV2-1224S/R20
RHV2-1224S/R20
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 24V 84mA 10.8V - 13.2V Input
Quick Inquiry
RHV2-1224S/R20
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Recom Power |
| Series | ECONOLINE RHV2 (2W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 84mA |
| Power (Watts) | 2 W |
| Applications | ITE (Commercial), Laboratory |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 77% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 16-SIP Module, 4 Leads |
| Size / Dimension | 1.77" L x 0.59" W x 0.67" H (45.0mm x 15.0mm x 17.0mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | RHV2-1224 |
| Voltage - Isolation | 20 kV |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |
| Part Number | RHV2-1224S/R20 | RHV2-0505D/R20 | RHV2-0505S/R20 | RHV2-0512D/R20 |
| Manufacturer | Recom Power | Recom Power | Recom Power | Recom Power |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 24V 2W | DC DC CONVERTER +/-5V 2W | DC DC CONVERTER 5V 2W | DC DC CONVERTER +/-12V 2W |
| Series | Recom Power | Recom Power | Recom Power | Recom Power |
| Packaging | Tube | Tube | Tube | Tube |
Customers Also Interested in
Recommended Products
RHV2-0505D/R20
Recom Power
RHV2-0505S/R20
Recom Power
RHV2-0512D/R20
Recom Power
RHV2-0512S/R20
Recom Power
RHV2-0524S/R20
Recom Power

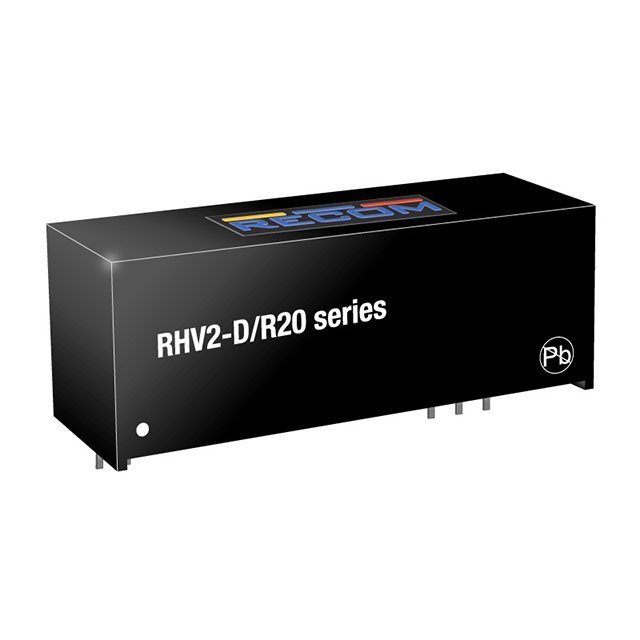

RHV2-1205D/R20
Recom Power

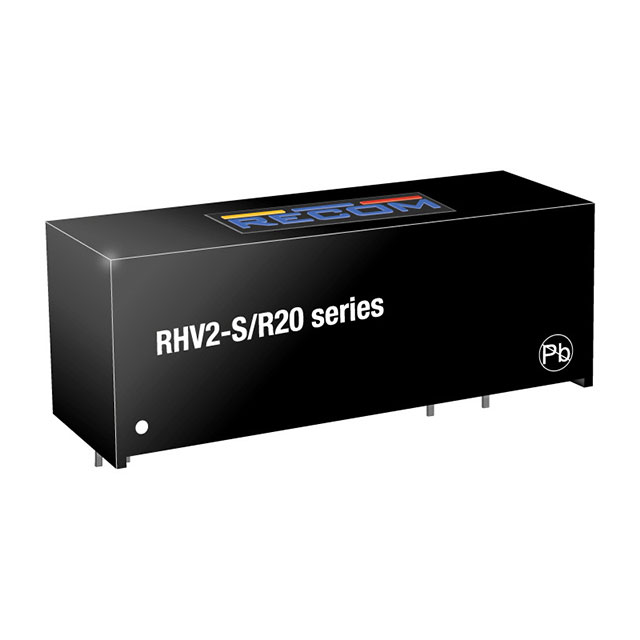

RHV2-1205S/R20
