RJE08166041M
lmages are for reference only.RJE08166041M
SINGLE PORT MODULAR JACK - VERTI
Datasheet-
16,171 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Jack Modular Connector 6p6c (RJ11, RJ12, RJ14, RJ25) Vertical Unshielded Cat3
RJE08166041M
| Category | Connectors, Interconnects - Modular Connectors - Modular Connector Jacks |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | RJE08 |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Connector Type | Jack |
| Number of Positions/Contacts | 6p6c (RJ11, RJ12, RJ14, RJ25) |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Mounting Type | Through Hole |
| Orientation | Vertical |
| Termination | Solder |
| Shielding | Unshielded |
| Ratings | Cat3 |
| Features | - |
| LED Color | Does Not Contain LED |
| Ingress Protection | - |
| Tab Direction | User Selectable |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Housing Material | Thermoplastic |
| Operating Temperature | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

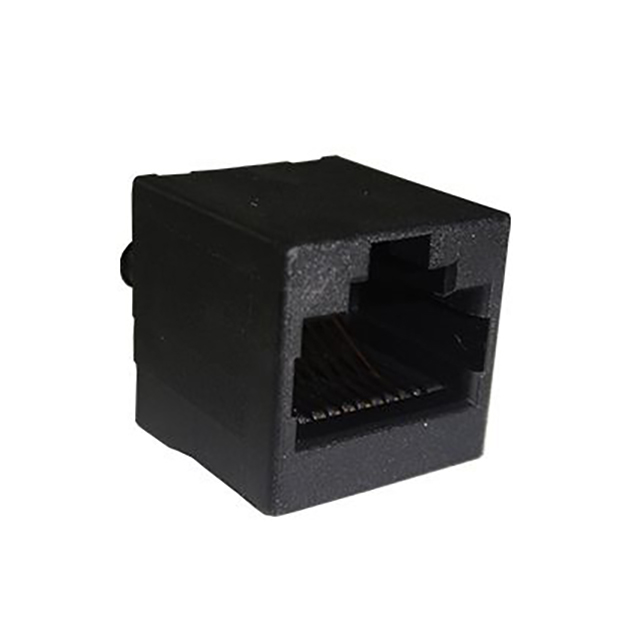

| Part Number | RJE081660410 | RJE08166041MH | RJE081660110 | RJE08166011F |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant |
| Description | CONN MOD JACK 6P6C VERT UNSHLD | SINGLE PORT MODULAR JACK - VERTI | CONN MOD JACK 6P6C VERT UNSHLD | SINGLE PORT, 6P6C, VERTICAL, UNS |
| Series | RJE08 | RJE08 | RJE08 | RJE08 |
| Packaging | Tray | Tray | Tray | Tray |
