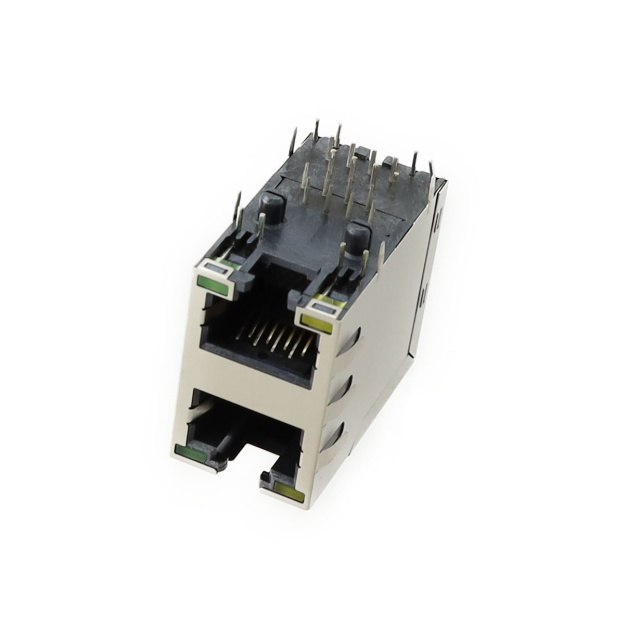

RJE1R288235413
lmages are for reference only.RJE1R288235413
8P8C, CAT5E OVER CAT6, 2X1 STACK
Datasheet-
36,766 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5e, Cat6
RJE1R288235413
| Category | Connectors, Interconnects - Modular Connectors - Modular Connector Jacks |
| Manufacturer | Amphenol ICC (Commercial Products) |
| Series | RJE1R |
| Packaging | Tray |
| RoHS Status | RoHS Compliant |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Number of Ports | 2 |
| Number of Rows | 2 |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Shielding | Shielded, EMI Finger |
| Ratings | Cat5e, Cat6 |
| Features | - |
| LED Color | Yellow - Green |
| Ingress Protection | - |
| Tab Direction | Up and Down |
| Contact Material | Phosphor Bronze |
| Contact Finish | Gold |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Housing Material | Thermoplastic |
| Operating Temperature | -40°C ~ 85°C |
| Base Product Number | RJE1R288 |
| Product Attribute |  |
 |
 |
 |

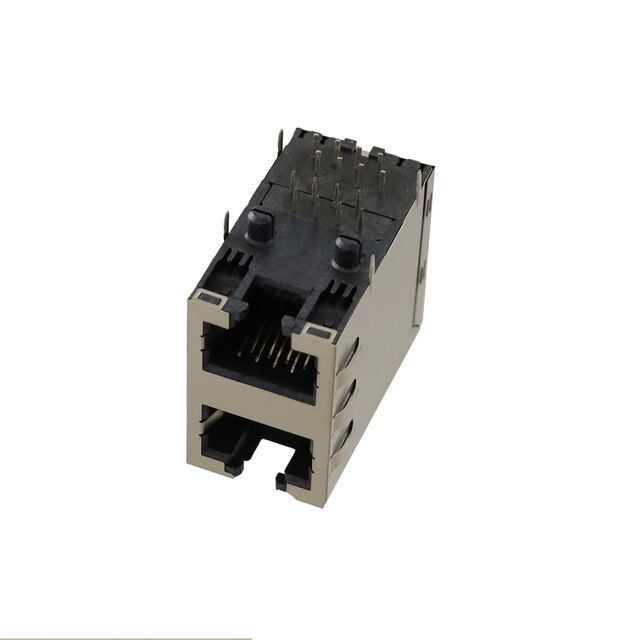

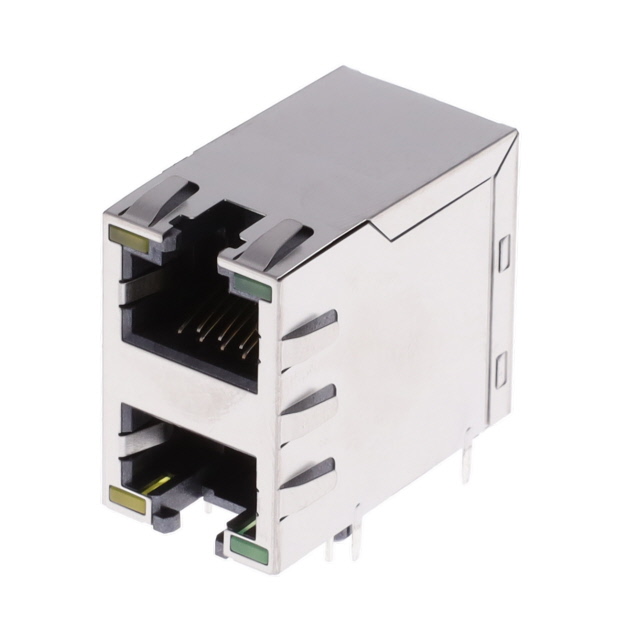

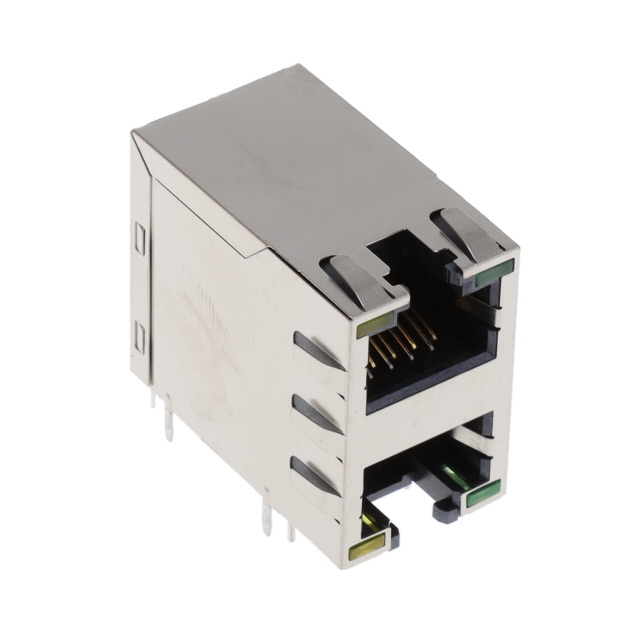

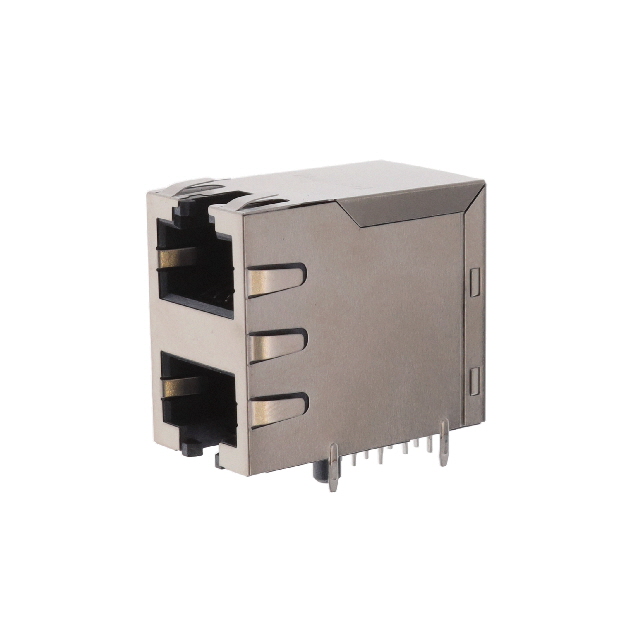

| Part Number | RJE1R288225403 | RJE1R288225413 | RJE1R288325413 | RJE1R288335403 |
| Manufacturer | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) | Amphenol ICC (Commercial Products) |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | 8P8C, CAT5E, 2X1 STACKED, SHIELD | 8P8C, CAT5E, 2X1 STACKED, SHIELD | 8P8C, CAT6 OVER CAT5E, 2X1 STACK | 8P8C, CAT6, 2X1 STACKED, SHIELD, |
| Series | RJE1R | RJE1R | RJE1R | RJE1R |
| Packaging | Tray | Tray | Tray | Tray |
