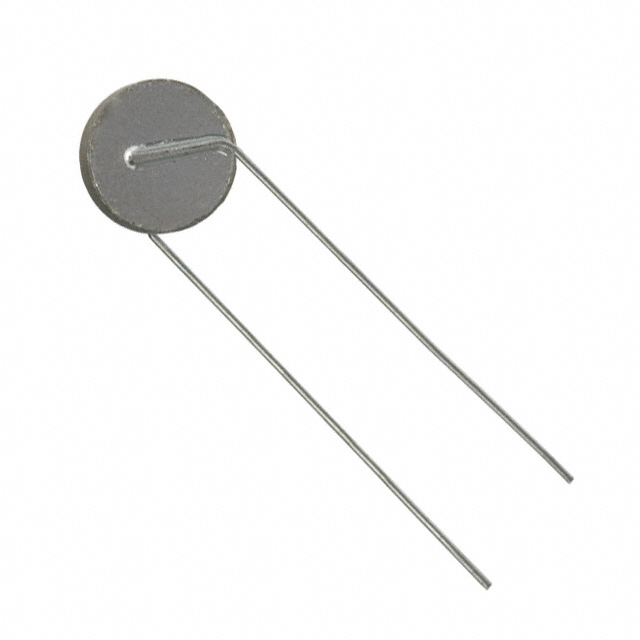

RL6015-100-120-240-PTO
lmages are for reference only.RL6015-100-120-240-PTO
PTC RESET FUSE 240V RADIAL DISC
DatasheetRadial, Disc
64,801 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Ceramic PTC Resettable Fuse 240V Ih Through Hole Radial, Disc
RL6015-100-120-240-PTO
| Category | Circuit Protection - PTC Resettable Fuses - |
| Manufacturer | Amphenol Thermometrics |
| Series | PTO |
| Packaging | Bulk |
| RoHS Status | |
| Type | Ceramic |
| Voltage - Max | 240V |
| Current - Hold (Ih) (Max) | - |
| Current - Trip (It) | - |
| Current - Max | - |
| Resistance - 25°C (Typ) | 100 Ohms |
| Operating Temperature | - |
| Ratings | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Disc |
| Size / Dimension | 0.650" Dia x 0.270" T (16.51mm x 6.86mm) |
| Height - Seated (Max) | 0.650" (16.51mm) |
| Thickness (Max) | - |
| Lead Spacing | 0.330" (8.38mm) |
| Approval Agency | - |
| Time to Trip | 90 s |
| Resistance - Initial (Ri) (Min) | - |
| Resistance - Post Trip (R1) (Max) | - |
| Grade | - |
| Qualification | - |
| Base Product Number | RL6015 |
| Product Attribute |  |
 |
 |
 |

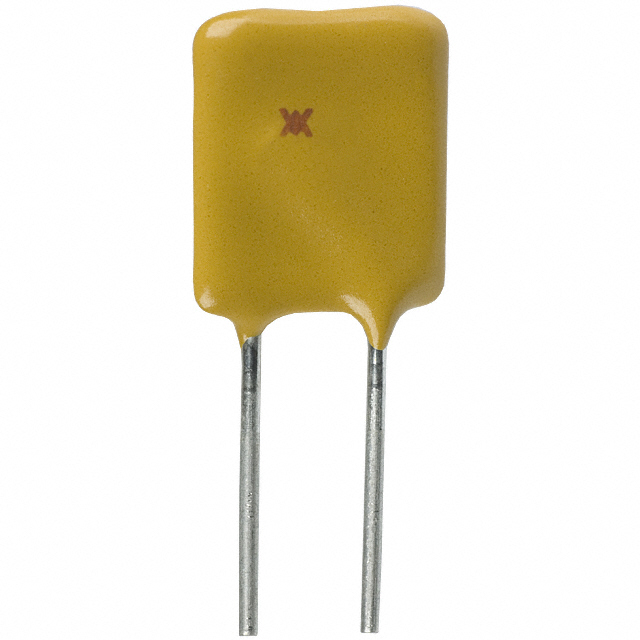

| Part Number | RHEF050US | RHEF1500 | RL5305-2.5-110-12-PTF | RUEF600 |
| Manufacturer | Littelfuse Inc. | Littelfuse Inc. | Amphenol Thermometrics | Littelfuse Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | PTC RESET FUSE 30V 500MA RADIAL | PTC RESET FUSE 16V 15A RADIAL | PTC RESET FUSE 12V 550MA RADIAL | PTC RESET FUSE 30V 6A RADIAL |
| Series | PolySwitch®, RHEF | PolySwitch®, RHEF | PTF | PolySwitch®, RUEF |
| Packaging | Bag | Bag-->Bag | Bulk | Bag |
