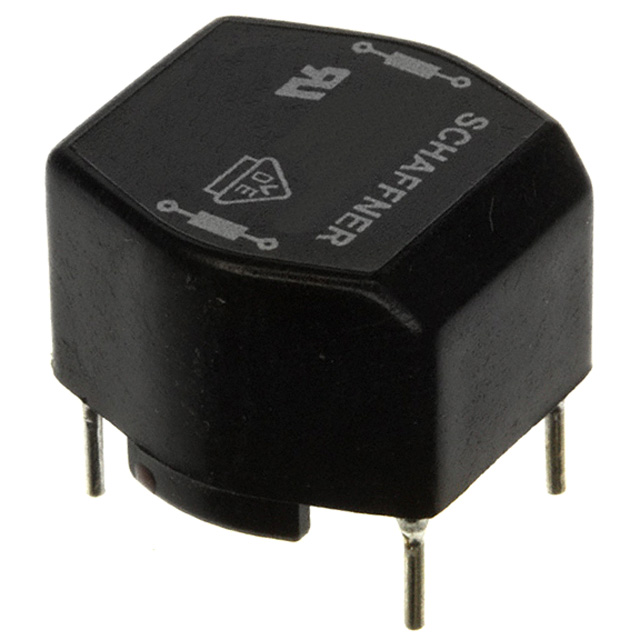

18 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 500mA DCR 1.1Ohm (Typ)
RN112-0.5-02-18M
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Schaffner EMC Inc. |
| Series | RN |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 2 |
| Inductance @ Frequency | 18 mH @ 10 kHz |
| Current Rating (Max) | 500mA |
| DC Resistance (DCR) (Max) | 1.1Ohm (Typ) |
| Voltage Rating - DC | - |
| Voltage Rating - AC | 300V |
| Operating Temperature | -40°C ~ 100°C |
| Ratings | - |
| Approval Agency | ENEC, UR, VDE |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 0.697" L x 0.673" W (17.70mm x 17.10mm) |
| Height (Max) | 0.508" (12.90mm) |
| Package / Case | Horizontal, 4 PC Pin |
| Base Product Number | RN112 |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | RN112-0.5-02 | RN112-0.5-02-15M | RN112-0.5-02-27M | RN112-0.4-02 |
| Manufacturer | Schaffner EMC Inc. | Schaffner EMC Inc. | Schaffner EMC Inc. | Schaffner EMC Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant |
| Description | CMC 27MH 500MA 2LN TH | CMC 15MH 500MA 2LN TH | CMC 27MH 500MA 2LN TH | CMC 39MH 400MA 2LN TH |
| Series | RN | RN | RN | RN |
| Packaging | Tray | Tube | Tube | Tray |
