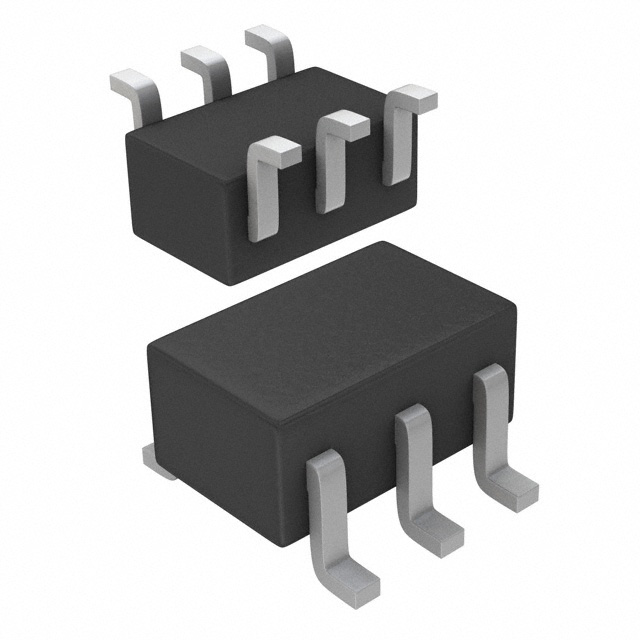

.jpg "RN1909(T5L,F,T)")
RN1909(T5L,F,T)
lmages are for reference only.RN1909(T5L,F,T)
TRANS 2NPN PREBIAS 0.2W US6
Datasheet6-TSSOP, SC-88, SOT-363
43,341 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Pre-Biased Bipolar Transistor (BJT) 2 NPN - Pre-Biased (Dual) 50V 100mA 250MHz 200mW Surface Mount US6
RN1909(T5L,F,T)
| Category | Discrete Semiconductor Products - Transistors - Bipolar BJT |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | - |
| Packaging | Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Transistor Type | 2 NPN - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Resistor - Base (R1) | 47kOhms |
| Resistor - Emitter Base (R2) | 22kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 70 @ 10mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 250µA, 5mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| Frequency - Transition | 250MHz |
| Power - Max | 200mW |
| Mounting Type | Surface Mount |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | US6 |
| Base Product Number | RN1909 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|
| Part Number | RN1901,LF(CT | RN1901,LXHF(CT | RN1901FE,LXHF(CT | RN1901FETE85LF |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | |
| Description | TRANS 2NPN PREBIAS 0.2W US6 | AUTO AEC-Q 2-IN-1 (POINT-SYM) NP | AUTO AEC-Q 2-IN-1 (POINT-SYMMETR | TRANS 2NPN PREBIAS 0.1W ES6 |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
