RP109L141D-TR
lmages are for reference only.RP109L141D-TR

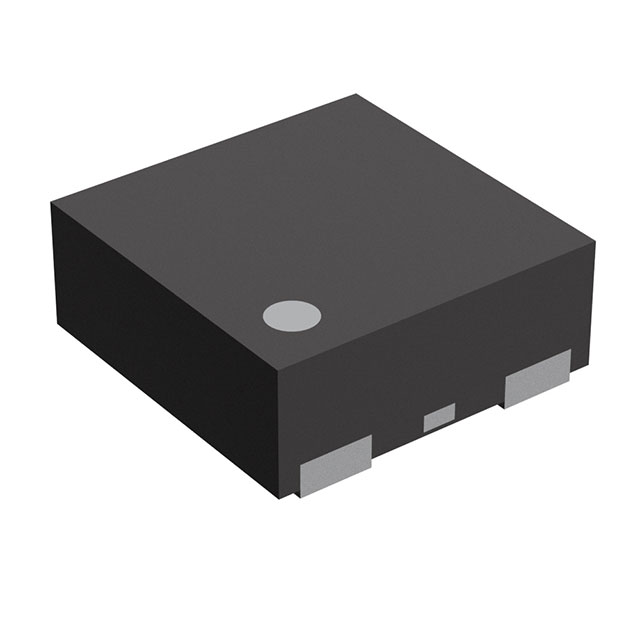

IC REG LIN 1.4V 150MA DFN1010-4
Datasheet4-XDFN Exposed Pad
22,665 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 150mA DFN1010-4
RP109L141D-TR
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Series | RP109x |
| Packaging | Tape & Reel (TR) |
| RoHS Status | RoHS Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output (Min/Fixed) | 1.4V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.54V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 70 µA |
| PSRR | 75dB (1kHz) |
| Control Features | Enable |
| Protection Features | Over Current |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 4-XDFN Exposed Pad |
| Supplier Device Package | DFN1010-4 |
| Base Product Number | RP109 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | RP109L101B-TR | RP109L101D-TR | RP109L101D5-TR | RP109L111B-TR |
| Manufacturer | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | IC REG LINEAR 1V 150MA DFN1010-4 | IC REG LINEAR 1V 150MA DFN1010-4 | IC REG LIN 1.05V 150MA DFN1010-4 | IC REG LIN 1.1V 150MA DFN1010-4 |
| Series | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
