RP402K501A-TR

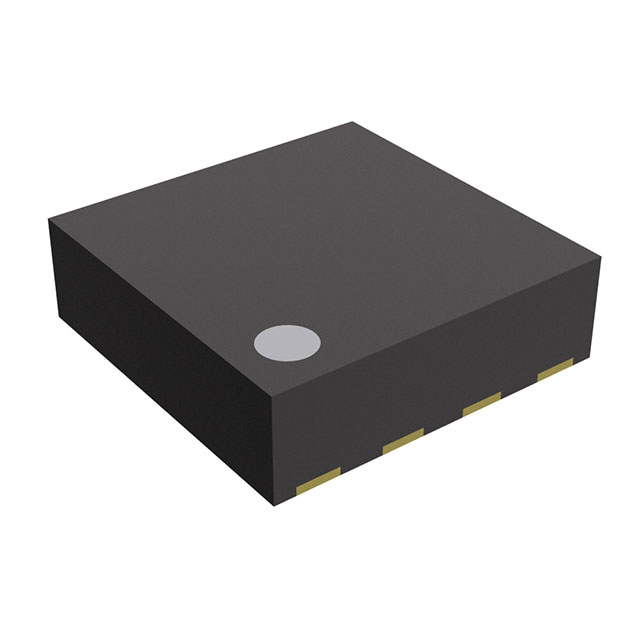

lmages are for reference only.RP402K501A-TR
IC REG BOOST 5V 800MA 8DFN
Datasheet8-UFDFN Exposed Pad
62,717 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Boost Switching Regulator IC Positive Fixed 5V 1 Output 800mA 8-UFDFN Exposed Pad
RP402K501A-TR
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators DC DC Switching Regulators |
| Manufacturer | Nisshinbo Micro Devices Inc. |
| Series | RP402x |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Function | Step-Up |
| Output Configuration | Positive |
| Topology | Boost |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 0.6V |
| Voltage - Input (Max) | 4.8V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Current - Output | 800mA |
| Frequency - Switching | 1.2MHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-UFDFN Exposed Pad |
| Supplier Device Package | DFN(PL)2020-8 |
| Base Product Number | RP402 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | RP402K501B-TR | RP402K502A-TR | RP402K502B-TR | RP402K512B-TR |
| Manufacturer | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | IC REG BOOST 5V 800MA 8DFN | IC REG BOOST 5V 800MA 8DFN | IC REG BOOST 5V 800MA 8DFN | IC REG BOOST 5.1V 800MA 8DFN |
| Series | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. | Nisshinbo Micro Devices Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
