RP438012
lmages are for reference only.RP438012
RELAY GEN PURPOSE SPST 12A 12V
Datasheet-
43,513 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
RP438012
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | RP II/1, SCHRACK |
| Packaging | Box |
| RoHS Status | RoHS Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Rating (Current) | 12 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 4800VA |
| Coil Current | 44.4 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Flux Protection |
| Coil Insulation | - |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 8 ms |
| Release Time | 2 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Approval Agency | cURus, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 270 Ohms |
| Base Product Number | RP4380 |
| Product Attribute |  |
 |
|
 |

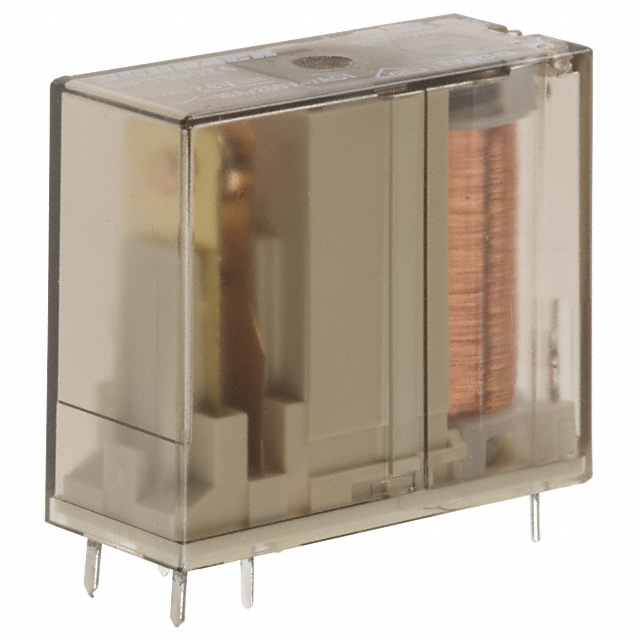

| Part Number | RP438024 | RP11566G8 | RP16144G2 | RP310005 |
| Manufacturer | TE Connectivity Potter & Brumfield Relays | TE Connectivity | TE Connectivity | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS Compliant | |
| Description | RELAY GEN PURPOSE SPST 12A 24V | General Purpose Relays RP11566G8 | General Purpose Relays RP16144G2 | RELAY GEN PURPOSE SPDT 16A 5V |
| Series | TE Connectivity Potter & Brumfield Relays | TE Connectivity | TE Connectivity | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tube | Tray | Tray | Box |
