RP714012
lmages are for reference only.RP714012
RELAY GEN PURPOSE SPDT 16A 12V
Datasheet-
40,274 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
General Purpose Relay SPDT (1 Form C) 12VDC Coil Through Hole
RP714012
| Category | Relays - Power Relays-Over 2 Amps - |
| Manufacturer | TE Connectivity Potter & Brumfield Relays |
| Series | RP II/1, SCHRACK |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Through Hole |
| Coil Voltage | 12VDC |
| Contact Form | SPDT (1 Form C) |
| Contact Rating (Current) | 16 A |
| Switching Voltage | 400VAC - Max |
| Load - Max Switching | 6400VA |
| Coil Current | 44.4 mA |
| Coil Type | Non Latching |
| Features | - |
| Termination Style | PC Pin |
| Seal Rating | Sealed - Fully |
| Coil Insulation | - |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 8 ms |
| Release Time | 2 ms |
| Operating Temperature | -40°C ~ 70°C |
| Contact Material | Silver Nickel (AgNi) |
| Approval Agency | cURus, VDE |
| Relay Type | General Purpose |
| Grade | - |
| Qualification | - |
| Coil Resistance | 270 Ohms |
| Base Product Number | RP7140 |
| Product Attribute |  |
|
 |
 |
| Part Number | RP11566G8 | RP16144G2 | RP310005 | RP310006 |
| Manufacturer | TE Connectivity | TE Connectivity | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS Compliant | RoHS Compliant |

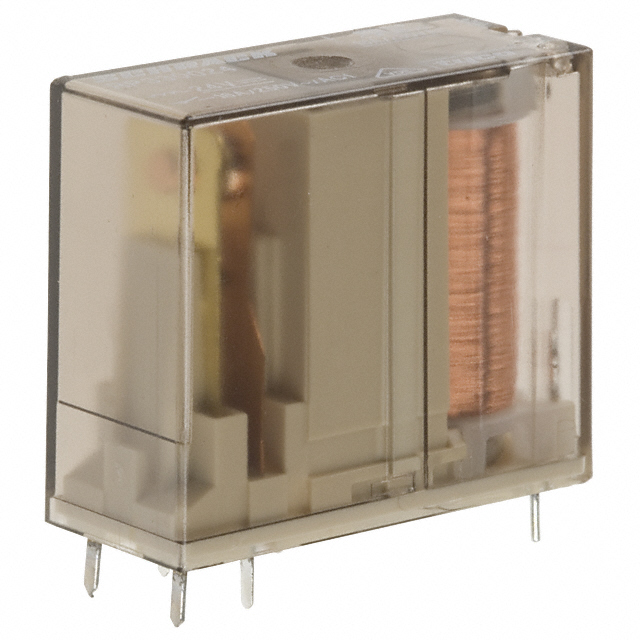

| Description | General Purpose Relays RP11566G8 | General Purpose Relays RP16144G2 | RELAY GEN PURPOSE SPDT 16A 5V | RELAY GEN PURPOSE SPDT 16A 6V |
| Series | TE Connectivity | TE Connectivity | TE Connectivity Potter & Brumfield Relays | TE Connectivity Potter & Brumfield Relays |
| Packaging | Tray | Tray | Box | Tube |
