RQB-100Y54F

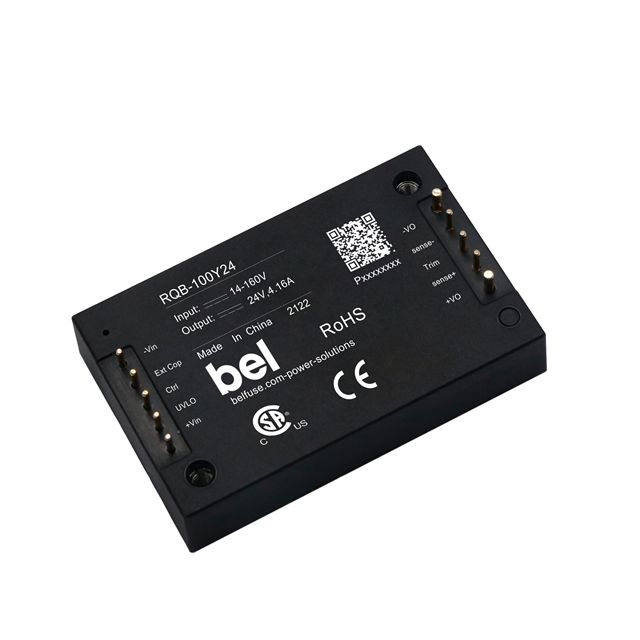

lmages are for reference only.RQB-100Y54F
DC-DC,14-160V INPUT, 54V/1.85A O
DatasheetQuarter Brick
50,039 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 54V 1.85A 14V - 160V Input
RQB-100Y54F
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Bel Power Solutions |
| Series | RQB-100Y |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 14V |
| Voltage - Input (Max) | 160V |
| Voltage - Output 1 | 54V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.85A |
| Power (Watts) | 100 W |
| Applications | ITE (Commercial), Railway |
| Features | Adjustable Output, Baseplate, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 105°C |
| Efficiency | 90% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Quarter Brick |
| Size / Dimension | 2.44" L x 2.20" W x 0.57" H (62.0mm x 56.0mm x 14.5mm) |
| Supplier Device Package | Quarter Brick |
| Control Features | - |
| Approval Agency | cCSAus, CE |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 3 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | RQB-100Y54 | RQB-100Y54C | RQB-100Y12 | RQB-100Y12C |
| Manufacturer | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC,14-160V INPUT, 54V/1.85A | DC-DC,14-160V INPUT, 54V/1.85A O | DC,14-160V INPUT, 12V/8.33A | DC-DC,14-160V INPUT, 12V/8.33A O |
| Series | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions | Bel Power Solutions |
| Packaging | Tray | Tray | Tray | Tray |
