RSHTK101M4EFK5002E

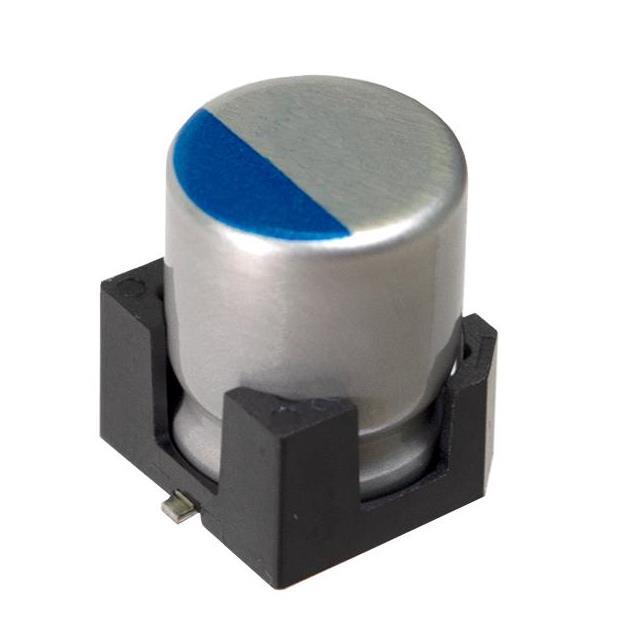

lmages are for reference only.RSHTK101M4EFK5002E
CAP ALUMHYB 100UF 20% 63V SMD
DatasheetRadial, Can - SMD
45,770 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
100 µF 63 V Aluminum - Polymer Capacitors Radial, Can - SMD 26mOhm 6000 Hrs @ 125°C
RSHTK101M4EFK5002E
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Elna America |
| Series | HTK |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Hybrid |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 26mOhm |
| Lifetime @ Temp. | 6000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 200 mA @ 120 Hz |
| Ripple Current @ High Frequency | 2 A @ 100 kHz |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | 0.409" L x 0.409" W (10.40mm x 10.40mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Base Product Number | - |
| Features | - |
| Impedance | - |
| Product Attribute |  |
 |
 |
 |

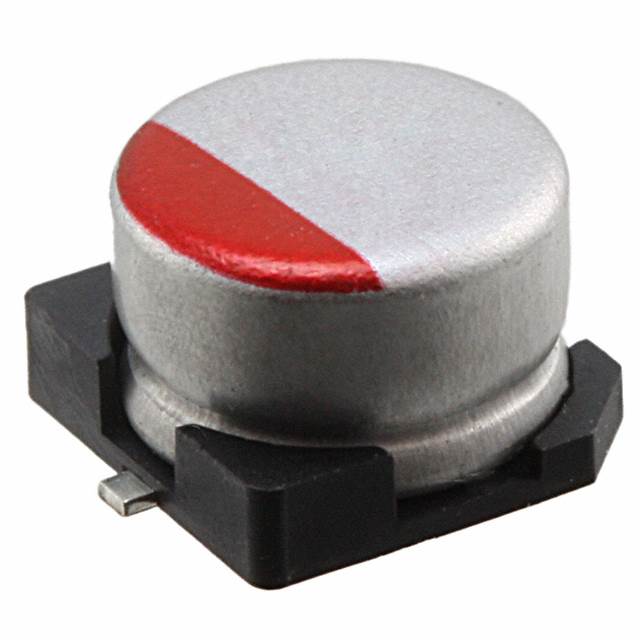

| Part Number | RSH0E391MCN1GB | RSH0J271MCN1GB | RSHT1121M4EGL5005E | RSHT1151M1GEH0002E |
| Manufacturer | Nichicon | Nichicon | Taiyo Yuden | Taiyo Yuden |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 390UF 20% 2.5V SMD | CAP ALUM POLY 270UF 20% 6.3V SMD | CAP ALUMHYB 120UF 20% 63V SMD | CAP ALUMHYB 150UF 20% 35V SMD |
| Series | FPCAP, RSH | FPCAP, RSH | HT1 | HT1 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) |
