RSX301L-30DDTE25
lmages are for reference only.RSX301L-30DDTE25
30V 3A, SINGLE, DO-214AC, HIGHLY
DatasheetDO-214AC, SMA
47,927 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Diode 30 V 3A Surface Mount PMDS
RSX301L-30DDTE25
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | Rohm Semiconductor |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 30 V |
| Current - Average Rectified (Io) | 3A |
| Voltage - Forward (Vf) (Max) @ If | 420 mV @ 3 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 200 µA @ 30 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-214AC, SMA |
| Supplier Device Package | PMDS |
| Operating Temperature - Junction | -40°C ~ 150°C |
| Base Product Number | - |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Product Attribute |  |
 |
 |
 |

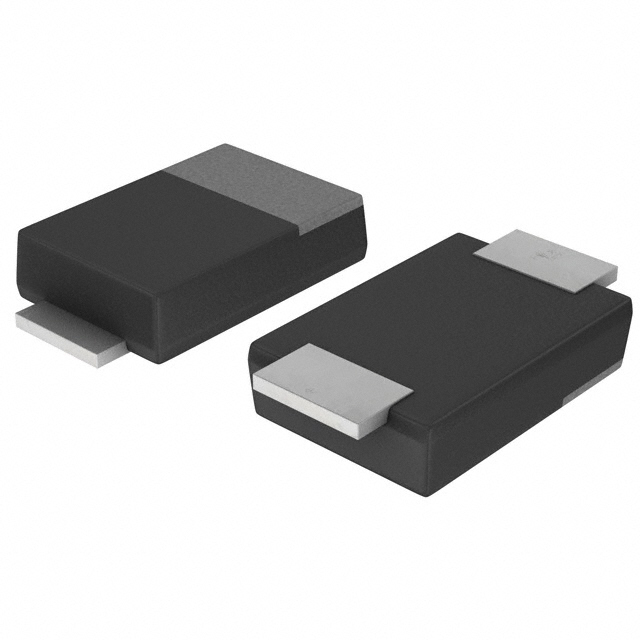

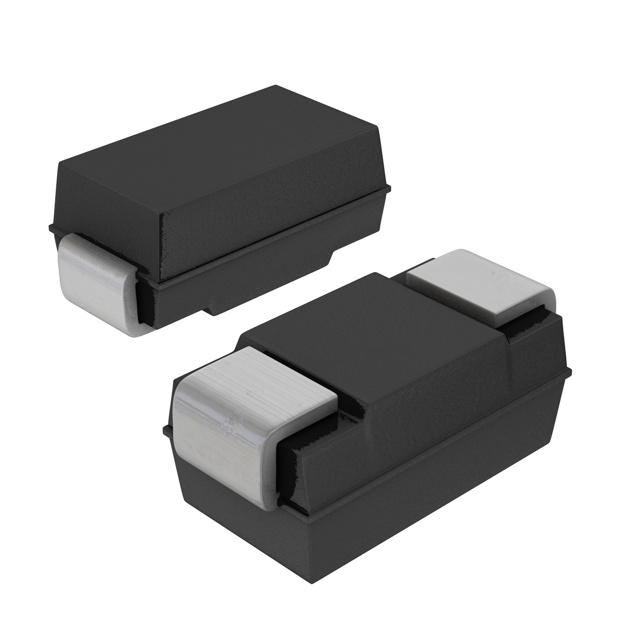

| Part Number | RSX301L-30TE25 | RSX301LA-30GTR | RSX301LA-30TR | RSX301LA-3YTR |
| Manufacturer | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor | Rohm Semiconductor |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE SCHOTTKY 30V 3A PMDS | DIODE SCHOTTKY 30V 3A PMDT | DIODE SCHOTTKY 30V 3A PMDT | DIODE SCHOTTKY 30V 3A PMDT |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
