RT9011-GSGJ6
lmages are for reference only.RT9011-GSGJ6
IC REG LINEAR 1.8V/3.3V TSOT23-6
DatasheetSOT-23-6 Thin, TSOT-23-6
88,650 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 2 Output 300mA, 300mA TSOT-23-6
RT9011-GSGJ6
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | Richtek USA Inc. |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V, 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.33V @ 300mA, 0.33V @ 300mA |
| Current - Output | 300mA, 300mA |
| Current - Quiescent (Iq) | 80 µA |
| PSRR | 70dB ~ 38dB (100Hz ~ 300kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 85°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Supplier Device Package | TSOT-23-6 |
| Base Product Number | RT9011 |
| Current - Supply (Max) | - |
| Product Attribute |  |
 |
 |
 |

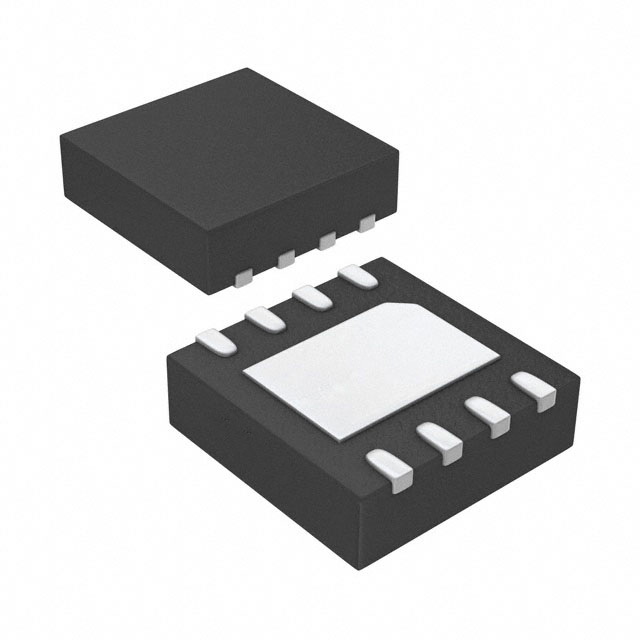

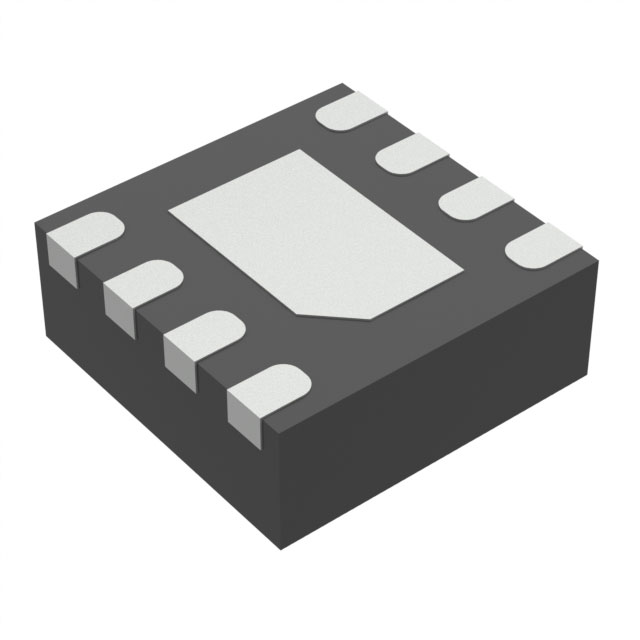

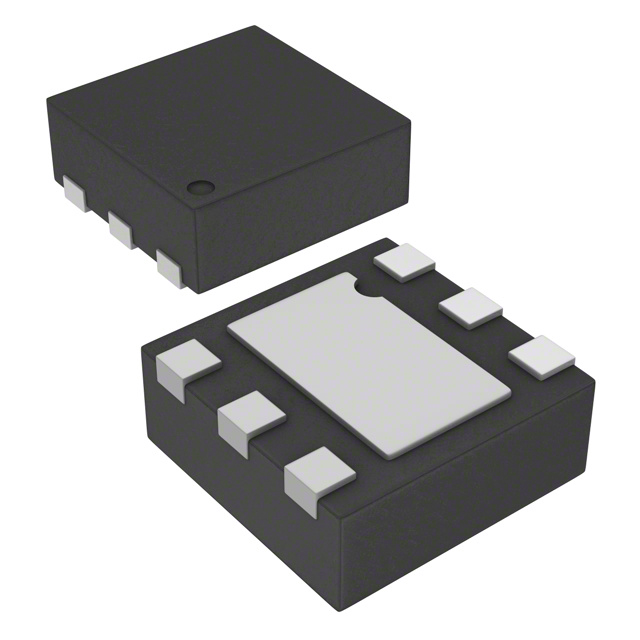

| Part Number | RT9011-GSGQW | RT9011-GSGQWB | RT9011-GSGQWC | RT9011-12GJ6 |
| Manufacturer | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC REG LINEAR 1.8V/3.3V 8WDFN | IC DUAL LDO 0.3A WDFN-8 | IC REG LINEAR 1.8V/3.3V 6WDFN | IC REG LINEAR 1.2V/1.2V TSOT23-6 |
| Series | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. | Richtek USA Inc. |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
