RTP120HVNAA

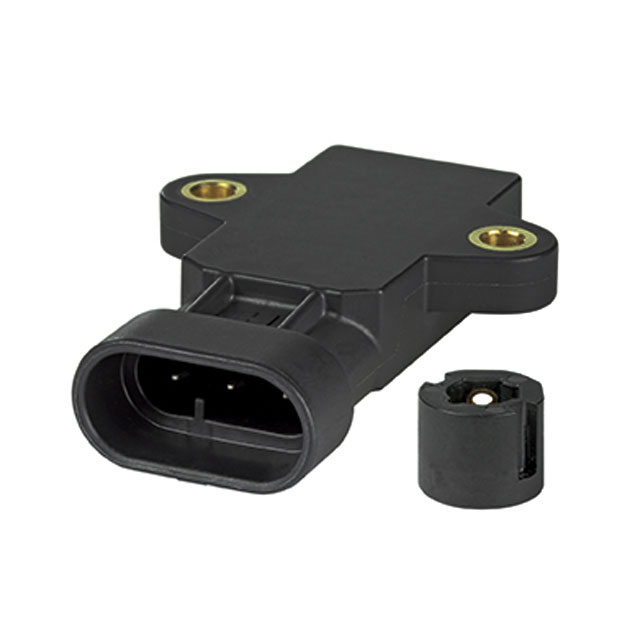

lmages are for reference only.RTP120HVNAA
SENSOR ROTARY 120DEG CONNECTOR
DatasheetBox with Connector
61,700 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Rotary Position External Magnet, Included Connector
RTP120HVNAA
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | RTP |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| For Measuring | Rotary Position |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 120° (±60°) |
| Linear Range | - |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Actuator Type | External Magnet, Included |
| Linearity | ±1% |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 10V ~ 30V |
| Mounting Type | Chassis Mount |
| Termination Style | Connector |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | Box with Connector |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | RTP120 |
| Product Attribute |  |
 |
|
 |
| Part Number | RTP120HVEAA | RTP120HVEAY | RTP120HVNAY | RTP120LVEAA |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | ||
| Description | SENSOR ROTARY 120DEG CONNECTOR | ROTARY TWO PIECE 120 DEG HIGH VO | ROTARY TWO PIECE 120 DEG HIGH VO | SENSOR ROTARY 120DEG CONNECTOR |
| Series | RTP | - | - | RTP |
| Packaging | Bulk | Bulk | Bulk | Bulk |
