RTP270LVNBA

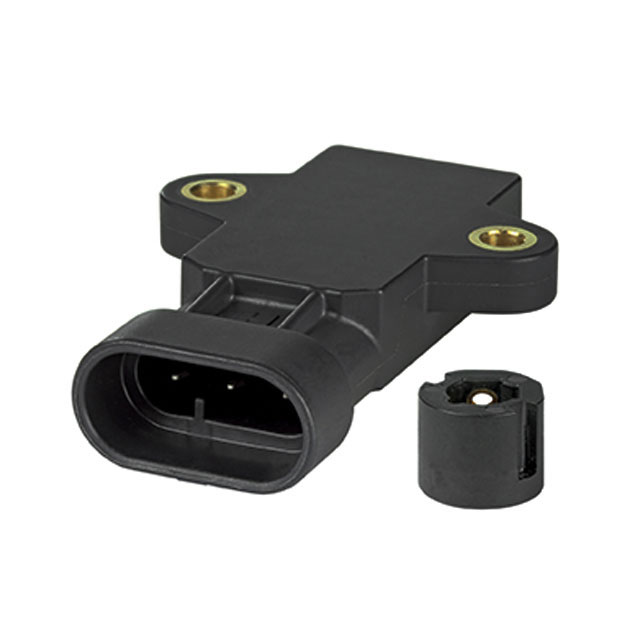

lmages are for reference only.RTP270LVNBA
ROTARY 2 PART SENSOR,270 DEG,LOW
DatasheetBox with Connector
53,253 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Rotary Position External Magnet, Included Connector
RTP270LVNBA
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | RTP |
| Packaging | Bulk |
| RoHS Status | |
| For Measuring | Rotary Position |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 270° (±135°) |
| Linear Range | - |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Actuator Type | External Magnet, Included |
| Linearity | ±1% |
| Resistance | 10 kOhms |
| Resistance Tolerance | - |
| Voltage - Supply | 4.5V ~ 5.5V |
| Mounting Type | Chassis Mount |
| Termination Style | Connector |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | Box with Connector |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | - |
| Product Attribute | |
|
|
 |
| Part Number | RTP270LVNBY | RTP270LVDPY | RTP270LVDPY-01 | RTP270LVEAA |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | |||
| Description | ROTARY TWO PIECE 270 DEG LOW VOL | RTP270LVDPY | SWING ANGLE SENSOR, 270 DEG, PWM | SENSOR ROTARY 270DEG CONNECTOR |
| Series | * | * | * | RTP |
| Packaging | Bulk | Bulk | Bulk | Bulk |
