RTY360LVNBA
lmages are for reference only.RTY360LVNBA
SENSOR ROTARY 360DEG CONNECTOR
DatasheetBox with Connector
65,681 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Hall Effect Sensor Rotary Position Flatted Shaft Connector
RTY360LVNBA
| Category | Sensors, Transducers - Position Sensors - Angle-Linear Position Measuring |
| Manufacturer | Honeywell Sensing and Productivity Solutions |
| Series | RTY |
| Packaging | Bulk |
| RoHS Status | RoHS Compliant |
| For Measuring | Rotary Position |
| Technology | Hall Effect |
| Rotation Angle - Electrical, Mechanical | 360° (±180°), Continuous |
| Linear Range | - |
| Output | Analog Voltage |
| Output Signal | Counterclockwise Increase |
| Actuator Type | Flatted Shaft |
| Linearity | ±1% |
| Resistance | - |
| Resistance Tolerance | - |
| Voltage - Supply | 5V |
| Mounting Type | Chassis Mount |
| Termination Style | Connector |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | Box with Connector |
| Supplier Device Package | - |
| Grade | - |
| Qualification | - |
| Base Product Number | RTY360 |
| Product Attribute |  |
 |
 |
 |

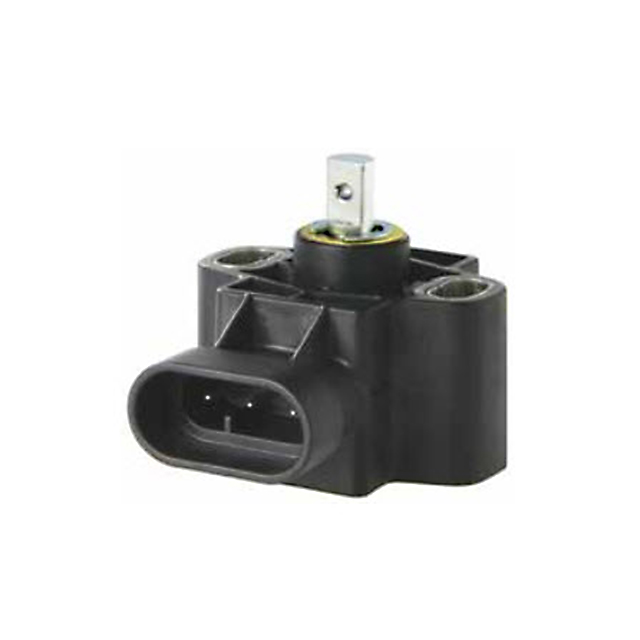

| Part Number | RTY360LVNBX | RTY360LVEAA | RTY360LVEAX | RTY360LVEBA |
| Manufacturer | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | RoHS Compliant |
| Description | SENSOR ROTARY 360DEG CONNECTOR | SENSOR ROTARY 360DEG CONNECTOR | SENSOR ROTARY 360DEG CONNECTOR | SENSOR ROTARY 360DEG CONNECTOR |
| Series | RTY | RTY | RTY | RTY |
| Packaging | Bulk | Bulk | Bulk | Bulk |
