RV8141-40-S01
lmages are for reference only.RV8141-40-S01
RV COMMON MODE CHOKE, NANO, FOUR
DatasheetHorizontal, 8 PC Pin
21,794 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
400 µH @ 100 kHz 4 Line Common Mode Choke Through Hole 40A DCR 1.3mOhm

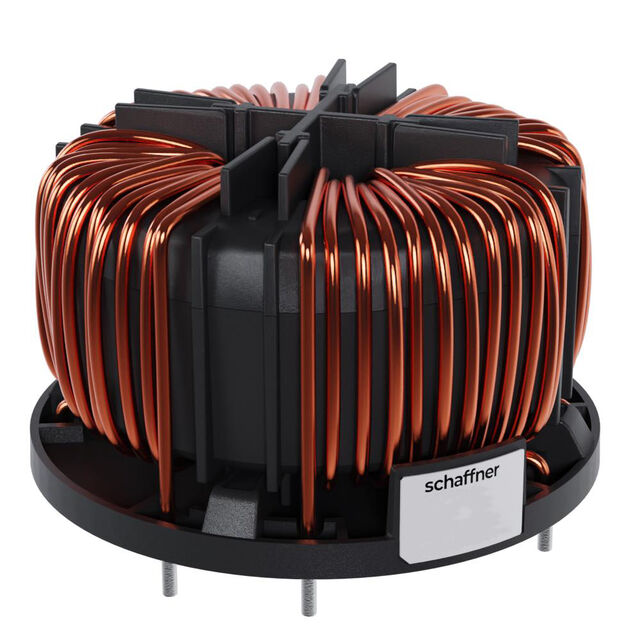

RV8141-40-S01
| Category | Filters - Common Mode Chokes - |
| Manufacturer | Schaffner EMC Inc. |
| Series | - |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Filter Type | Power Line |
| Number of Lines | 4 |
| Inductance @ Frequency | 400 µH @ 100 kHz |
| Current Rating (Max) | 40A |
| DC Resistance (DCR) (Max) | 1.3mOhm |
| Voltage Rating - DC | 1000V (1kV) |
| Voltage Rating - AC | 530V |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | - |
| Approval Agency | UR |
| Features | - |
| Mounting Type | Through Hole |
| Size / Dimension | 2.602" Dia (66.10mm) |
| Height (Max) | 1.618" (41.10mm) |
| Package / Case | Horizontal, 8 PC Pin |
| Base Product Number | - |
| Impedance @ Frequency | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | RV8141-40-S03 | RV8141-40-S11 | RV8141-40-S13 | RV8141-16-S01 |
| Manufacturer | Schaffner EMC Inc. | Schaffner EMC Inc. | Schaffner EMC Inc. | Schaffner EMC Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | RV COMMON MODE CHOKE, NANO, FOUR | RV COMMON MODE CHOKE, NANO, FOUR | RV COMMON MODE CHOKE, NANO, FOUR | RV COMMON MODE CHOKE, NANO, FOUR |
| Series | - | - | - | - |
| Packaging | Box | Box | Box | Box |
